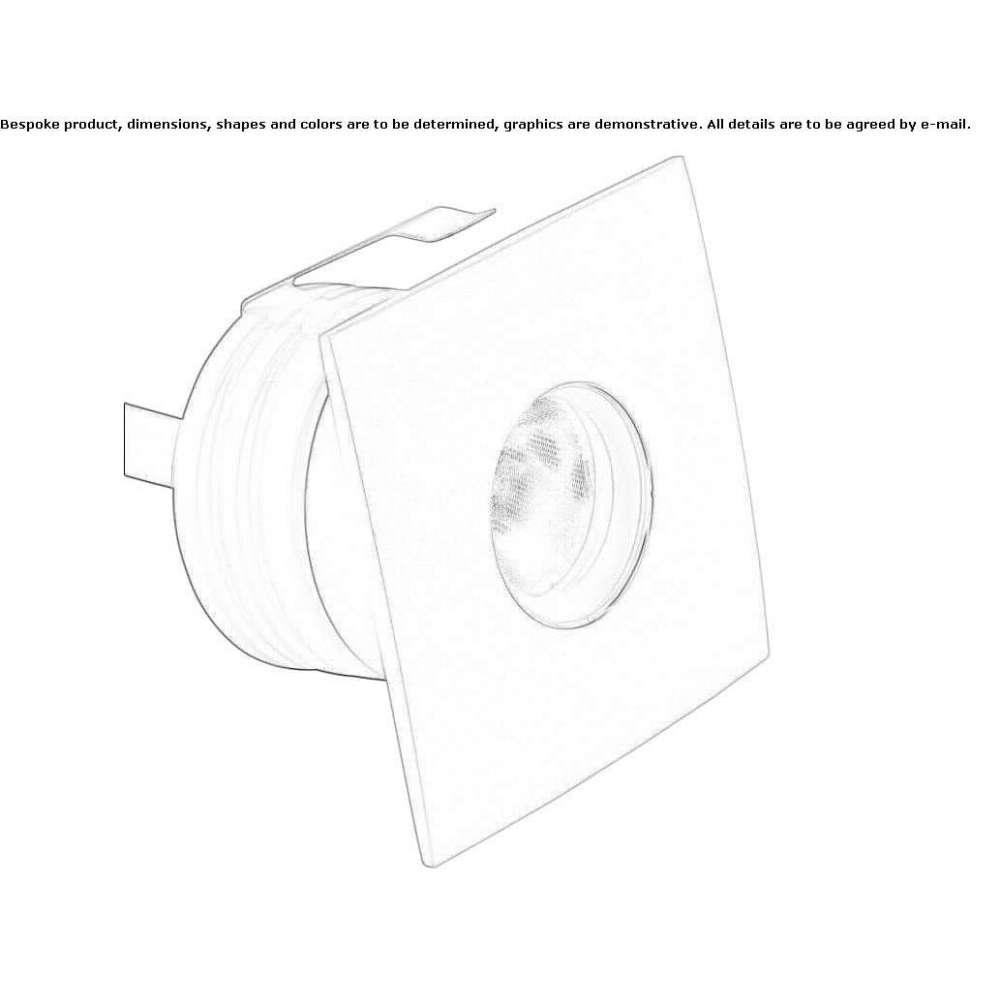

LED walkover stair light Bleneau

More info

Inspired by Proled 1SC THIN MONO (not replica Proled 1SC THIN MONO)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Proled 1SC

Product description

The PROLED INGGROUND series is designed for integration with the floor and offers various possibilities for architectural lighting design.
Dimmable and controllable using DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF power supplies from MULTI or PRO CONTROLLER.
Very shallow installation depth.
Stainless steel convex ring.
Power supply (24V ➔ CCU) in a separate metal box is included. An additional 24VDC switching power supply is required.
TECHNICAL DATA
IP Rating IP67 (Outdoor Use)
24VDC Power Source
316 Stainless Steel Ring
Housing Powder gray coated aluminum, 7 mm tempered glass
Load capacity over the entire surface = 1100 kg
Electrical connection 1x 0.5 m cable H05RN-F 2x 1.0 mm² for open cables
Average service life 50,000 h at L80/B10
Operating temperature range -10° C to +45° C.
PHOTOMETRIC DATA
LED type OSRAM 2 W, high power
Luminous flux warm white 150 lumens
Color temperature warm white 3000 K
CRI80
Light angle 30° and asymmetric 45°/35°.
