Outdoor RGB LED stair lamp Bleneau
More info

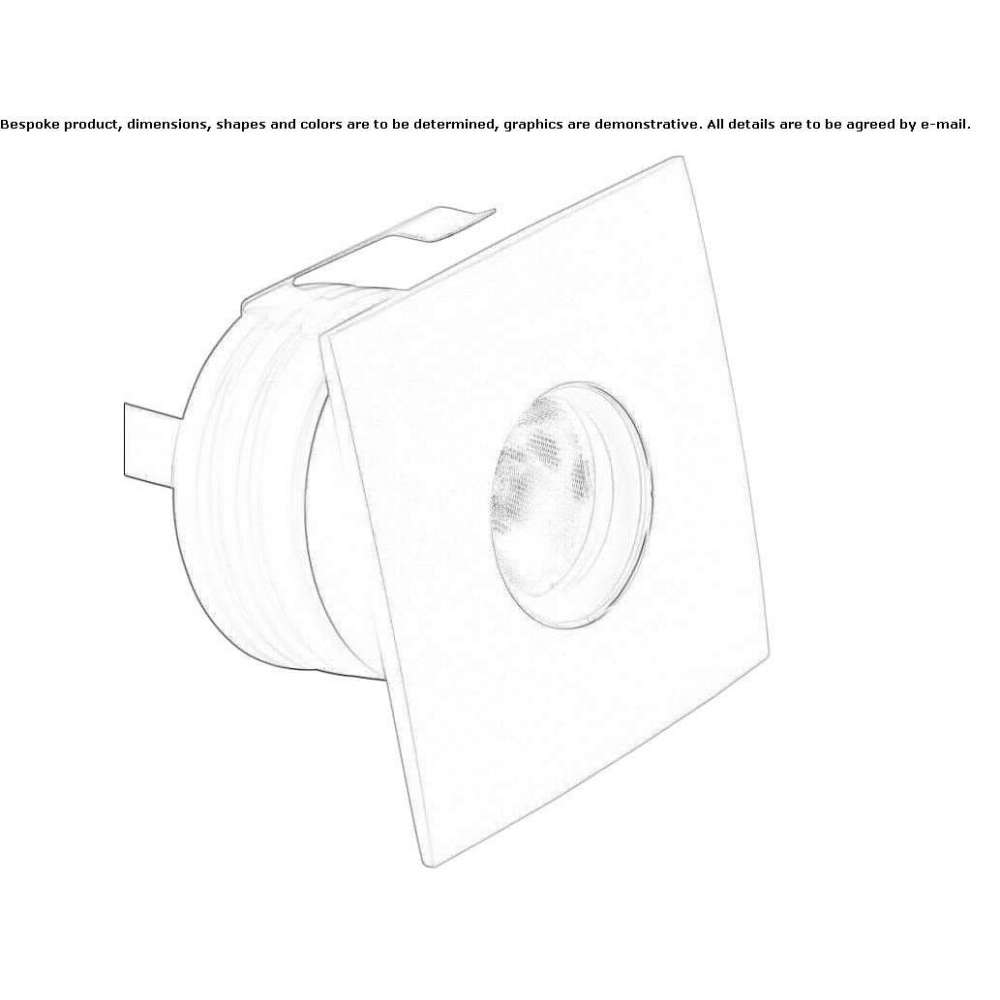

Inspired by Proled 1Sc Thin Triled Rgb (not replica Proled 1Sc Thin Triled Rgb)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Proled 1SC
Product description
The PROLED INGGROUND series is designed to be integrated with the floor and offers various possibilities for architectural lighting design.
Dimmable, automatic. color change, control via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF via MULTI or PRO power supplies CONTROLLER
Very small installation depth
Stainless steel convex ring
Transducer (24 V ➔ CCU) in a separate metal box. An additional 24 VDC common cathode (CC) power supply is required.
TECHNICAL DATA
IP Rating IP67 (for outdoor use)
24 VDC common cathode (CC) power source
Ring 316 stainless steel
Aluminum housing, powder-coated gray, tempered glass 7 mm
Load capacity over the entire surface = 1100 kg
Electrical connection 1x cable 0.5 m H05RN-F 4x 0, 75 mm² to open cables
Average life 50,000 h at L80/B10
Operating temperature range -10° C to +45° C
PHOTOMETRIC DATA
3-in-1 LED diodes RGB
Luminous flux
red 25 lumens
green 50 lumens
blue 10 lumens
r+g+b (white) 80 lumens
Wavelength
/>red 620 nm
green 525 nm
blue 460 nm
beam angle 30°
