Due to the copyright notice, please note that this product is not a replica
Inspired by: Proled 1SC
Product description

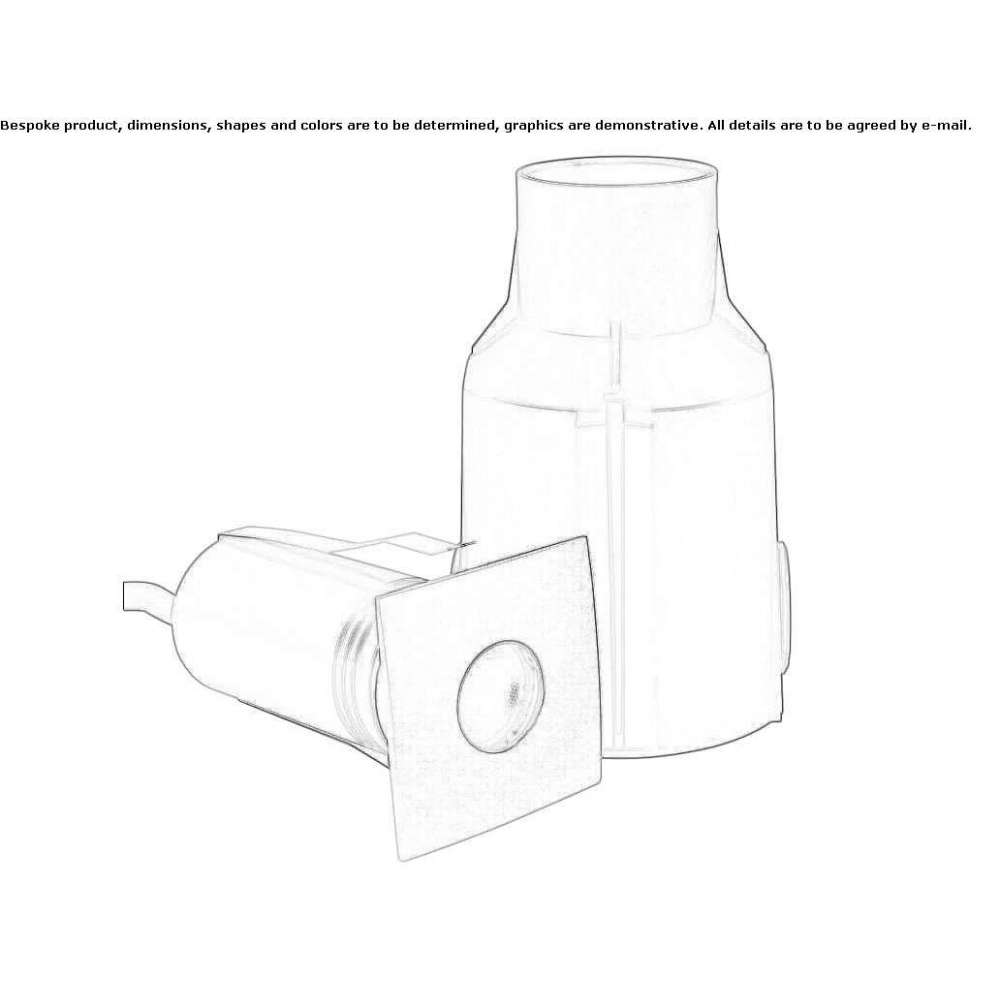

The PROLED INGGROUND series is designed to be integrated with the floor and offers various possibilities for architectural lighting design. Dimmable, automatic. color change, control via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF via MULTI or PRO CONTROLLER power supplies. Includes. PVC mounting sleeve. Stainless steel domed ring. TECHNICAL DATA IP Rating IP67 (for outdoor use) 24 VDC Power Source Common Cathode (CC) />Ring 316 stainless steel Casing, powder-coated aluminum, gray, tempered glass 7 mm Mounting sleeve PVC material Load capacity over the entire surface = 1700 kg Electrical connection 1x cable 0 .5 m H05RN- F 4x 0.75 mm² for open cables Average life 50,000 h at L80/B10 Operating temperature range -10° C to +45° C PHOTOMETRIC DATA LED type RGB 3 in 1 LEDs Luminous flux red 30 lumens green 60 lumens blue 15 lumens r+g+b (white) 105 lumens >Wavelength red 620 nm green 525 nm blue 460 nm Beam angle 30°
