Due to the copyright notice, please note that this product is not a replica

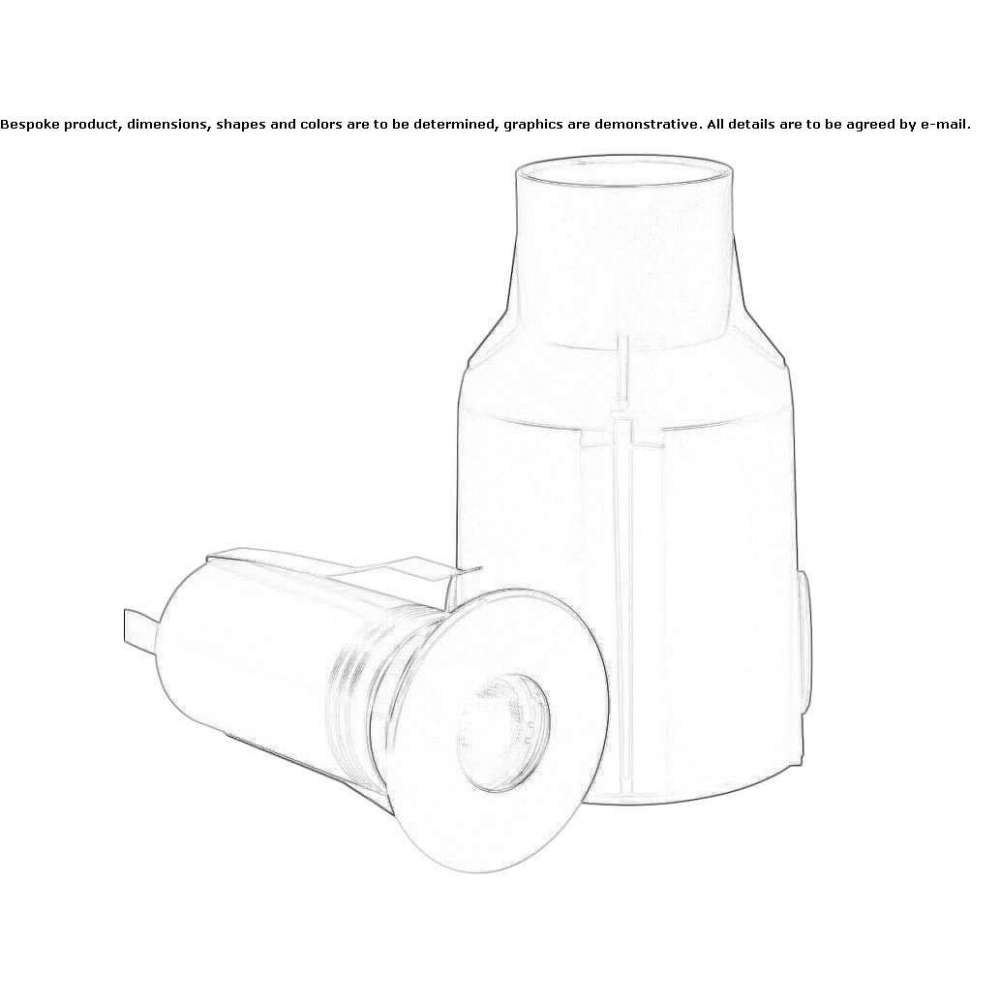

Inspired by: Proled 1R
Product description
The PROLED INGGROUND series is designed for integration with the floor and offers various possibilities for designing architectural lighting. dimmable, automatic. color change, control via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF via MULTI or PRO CONTROLLER power supplies included. PVC mounting sleeve TECHNICAL SPECIFICATIONS IP Rating IP67 (Outdoor Use) 24 VDC Power Source Common Cathode (CC) 316 Stainless Steel Ring Powder-coated gray aluminum housing, 7 mm tempered glass PVC mounting sleeve, plastic Load capacity over the entire surface = 1700 kg Electrical connection 1x cable 0.5 m H05RN-F 4x 0.75 mm² for open cables Average life 50,000 h at L80/B10 Operating temperature range -10° C to +45° C PHOTOMETRIC DATA RGB LED diodes 3 in 1 Luminous flux red 30 lumens green 60 lumens blue 15 lumens r+g+b (white) 105 lumens Wavelength red 620 nm green 525 nm blue 460 nm Beam angle 30°
