Inspired by Proled 1RC MONO (not replica Proled 1RC MONO)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Proled 1RC
Product description

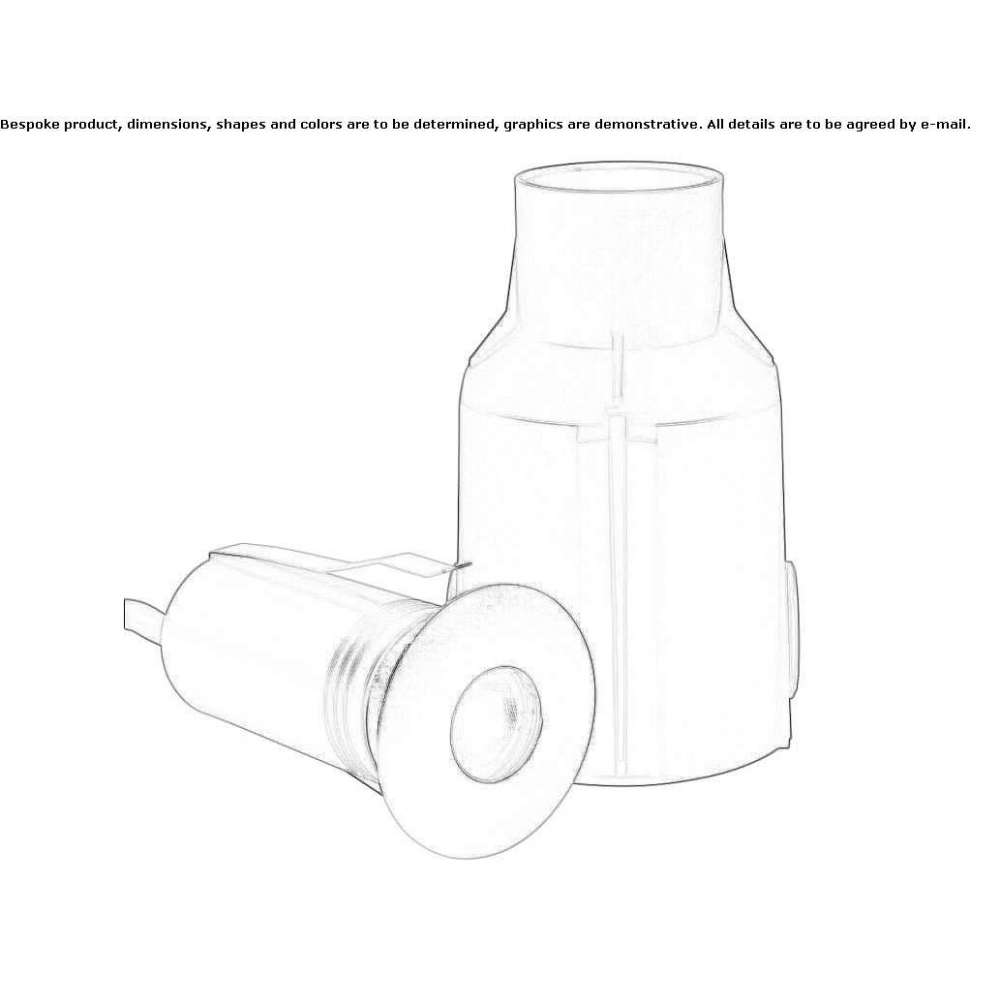

The PROLED INGGROUND series is designed to be integrated with the floor and offers various possibilities for architectural lighting design. Dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI or PRO CONTROLLER power supplies incl. PVC plastic mounting sleeve Stainless steel dome ring TECHNICAL DATA IP classification IP67 (for outdoor use) 24 VDC power source 316 stainless steel ring Powder-coated gray aluminum housing, 7 mm tempered glass Mounting sleeve made of PVC material Load capacity over the entire surface = 1700 kg Electrical connection 1x cable 0, 5 m H05RN-F 2x 1.0 mm² for open cables Average life 50,000 h at L80/B10 Operating temperature range -10° C to +45° C PHOTOMETRIC DATA LED diode type OSRAM 2 W, high power Luminous flux warm white 160 Lumens Color temperature warm white 3000 K CRI80 Light distribution angle 30° and asymmetric 45°/ 35°.
