Due to the copyright notice, please note that this product is not a replica

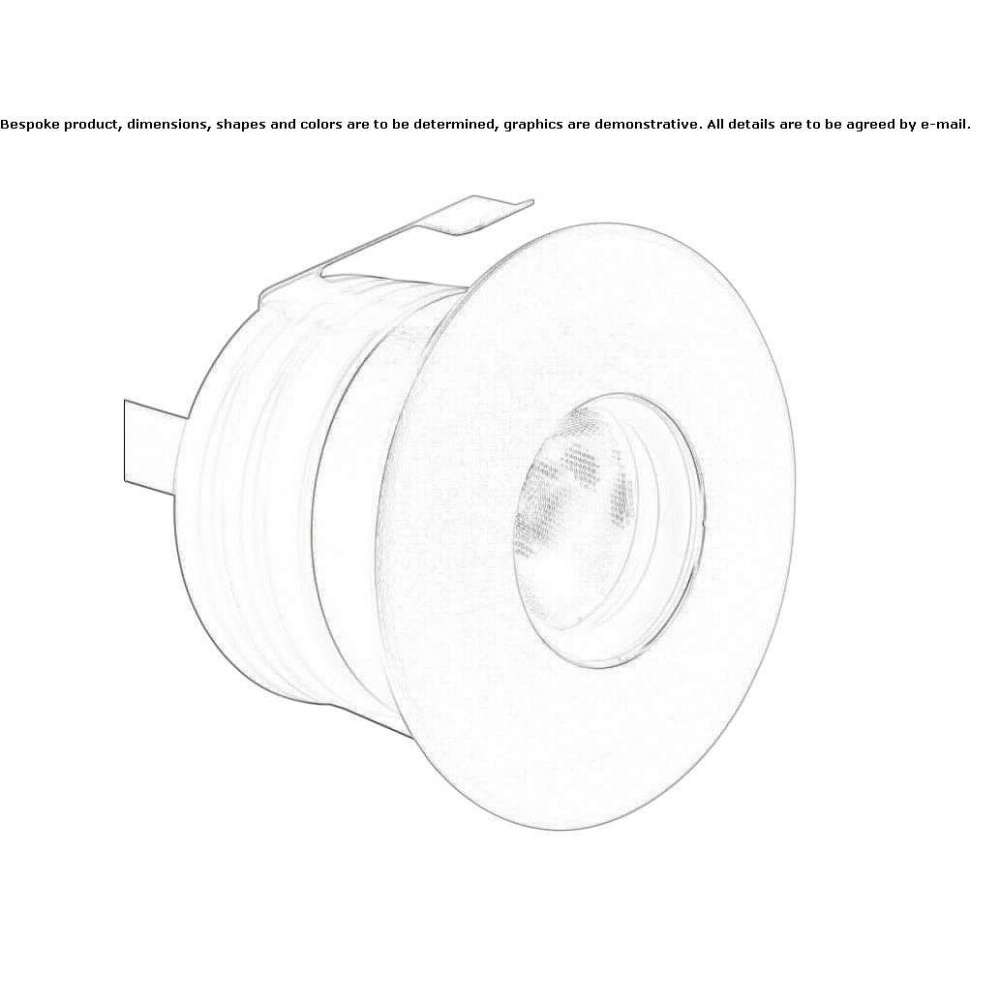

Inspired by: Proled 1RC
Product description
The PROLED INGGROUND series is designed for integration with the floor and offers various possibilities for architectural lighting design. Dimmable and controllable using DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF power supplies from MULTI or PRO CONTROLLER. Very shallow installation depth. Stainless steel convex ring. Power supply (24V ➔ CCU) in a separate metal box is included. An additional 24VDC switching power supply is required. TECHNICAL DATA IP Rating IP67 (Outdoor Use) 24VDC Power Source 316 Stainless Steel Ring Housing Powder gray coated aluminum, 7 mm tempered glass Load capacity over the entire surface = 1100 kg Electrical connection 1x 0.5 m cable H05RN-F 2x 1.0 mm² for open cables Average service life 50,000 h at L80/B10 Operating temperature range -10° C to +45° C. PHOTOMETRIC DATA LED type OSRAM 2 W, high power Luminous flux warm white 150 lumens Color temperature warm white 3000 K CRI80 Light angle 30° and asymmetric 45°/35°.
