Inspired by Metalmek Vector M 9727 (not replica Metalmek Vector M 9727)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Metalmek Vector M
Product description

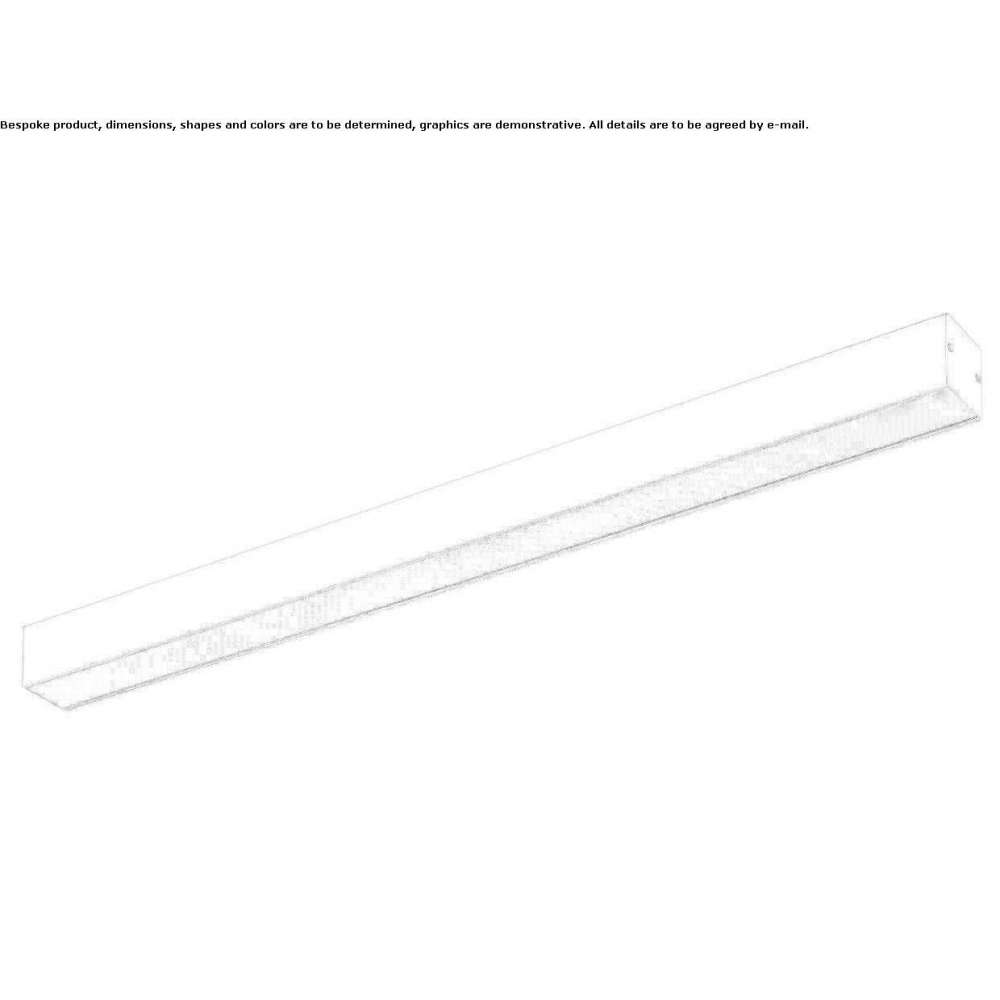

VECTOR M 9727 is an aluminum ceiling lamp providing direct light, powder coated. Mountings: • Surface-mounted luminaire • Suspended luminaire acc. 4417SP1-2, 4417SP1-3, 4406 • Built-in luminaire Light emission: Direct, symmetrical Housing: Made of extruded aluminum, painted SOLVENT FREE in white, black, gray or other colors on order, epoxy-polyester powders, thermosetting at 180°C, after phosphating. Removable equipment plate on which the wiring elements are mounted, made of extruded aluminum, painted with SOLVENT-FREE white epoxy-polyester powders, thermosetting at 180° C, after phosphating. Optical device: Transparent microprismatic polycarbonate diffuser Light source: LED CRI ≥80 Ra • 3000 K • 4000 K • Color tolerance 3 MacAdam (3 SDCM) • Lifespan (Ta=25°C) 50000h L80B10 Wiring: Class I Power supply 220~240 V / 50-60 Hz Maximum capacity in continuous row max. 10 A Efficiency data: Efficiency A+ Protection level IP20UGR ≤19 Marks: CE Regulations: EN 60598- 1 EN 60598-2-1 EN 60598-2-2 EN 62031 Photobiological safety of lamps and lamp systems: EN 62471 IEC /TR 62778 Risk exempt - GR 0 Directives: 2014/35/EU 2014/30/EU VERSIONS ON DEMAND (if possible) • Dimmable electronic ballast • DALI dimmable electronic ballast • RA90
