Inspired by Metalmek Vector Frame M 9728 (not replica Metalmek Vector Frame M 9728)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Metalmek Vector M
Product description

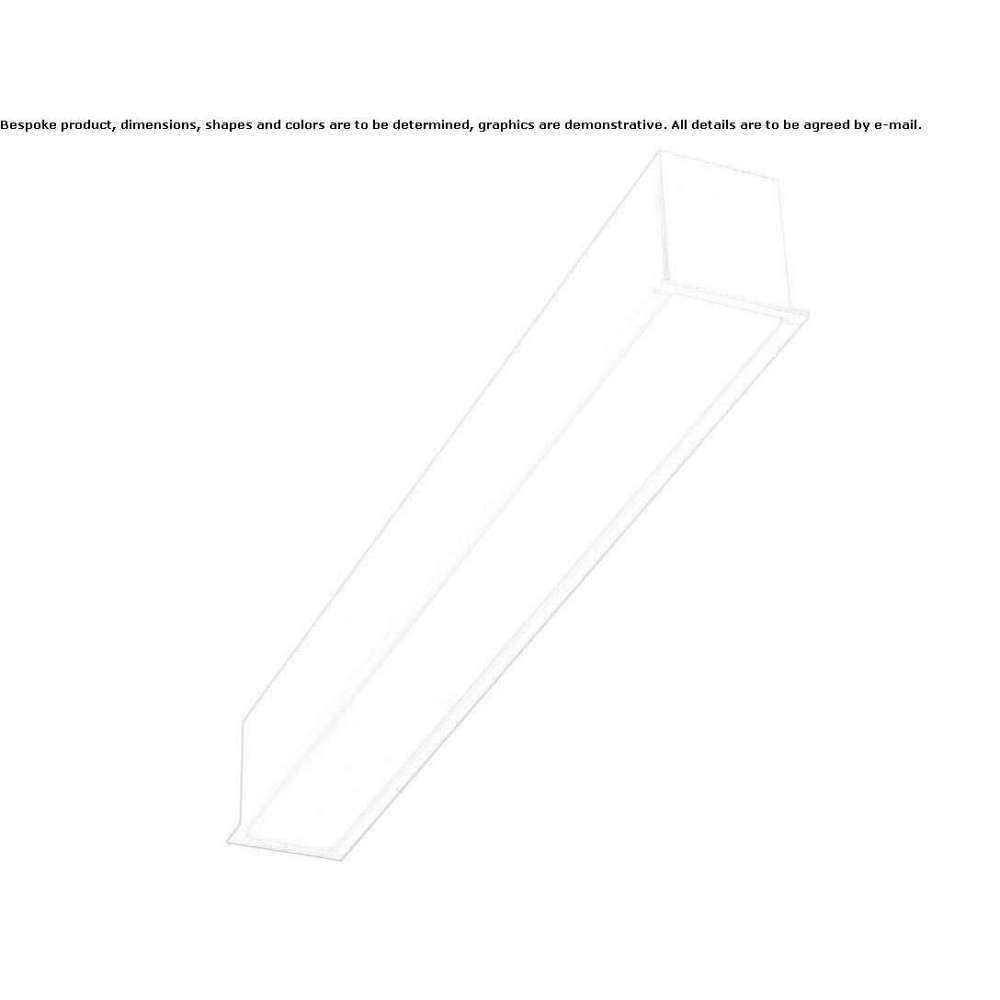

VECTOR FRAME M 9728 is a recessed, powder-coated lamp for suspended ceilings. Mountings: Suspended ceiling for installation in plasterboard Light emission: Direct, symmetrical Body: Made of extruded aluminum , painted with solvent-free paint, white, black, gray or other colors on request, epoxy-polyester powders, thermosetting at 180°C, after phosphating. Removable accessory plate on which the wiring elements are mounted. Die-cast aluminum cap. Optical device: Transparent microprismatic polycarbonate diffuser Light source: LED CRI ≥80 Ra • 3000 K • 4000 K • Color tolerance 3 MacAdam (3 SDCM ) Wiring: Class I Power supply 220~240 V / 50-60 Hz Performance data: Efficiency A+ Protection level IP20 Lifetime (Ta =25°C) 50000h L80B10 Marks: CE Regulations: EN 60598-1 EN 60598-2-1 EN 60598-2-2 EN 62031 Photobiological safety of lamps and lamp systems: EN 62471 IEC/TR 62471-2 Risk exempt – GR 0 />Directives: 2014/35/CE 2014/30/CE VERSIONS ON ORDER • Dimmable electronic ballast • Dimmable DALI electronic ballast (if possible ) • RA90
