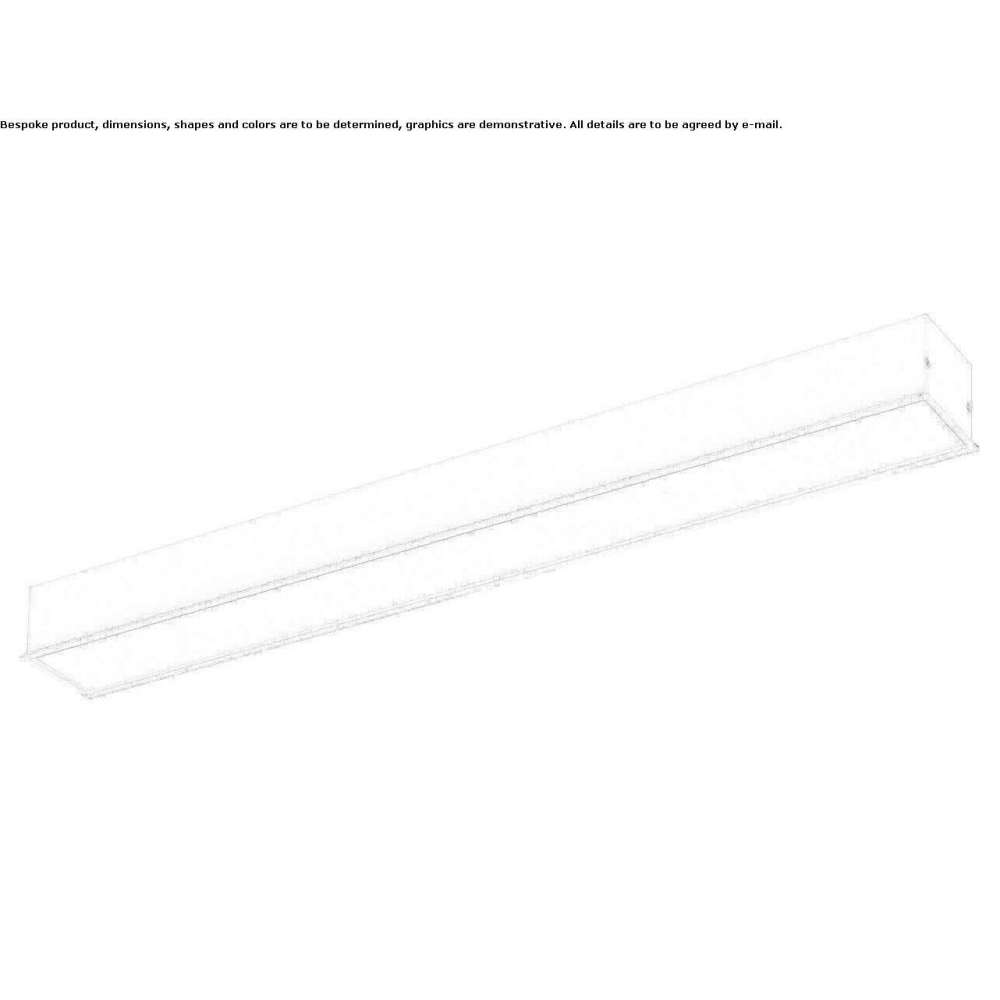

Recessed LED ceiling lamp Beleti
More info
Inspired by Metalmek Vector Frame L 9731 (not replica Metalmek Vector Frame L 9731)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Metalmek Vector L
Original code: 9731 OP
Product description
VECTOR FRAME L 9731 has a body made of extruded aluminum, painted with SOLVENT-FREE, white, black, gray or other color on request, with epoxy-polyester powders, thermosetting at 180°C, after phosphating. Removable hardware plate on which the wiring components are mounted. End cap made of die-cast aluminum.
Mountings: Suspended ceiling recessed into the plasterboard
Light emission: Direct, symmetrical
Housing: Made of extruded aluminum, painted WITHOUT SOLVENTS in white, black, gray or other colors on request, epoxy-polyester powders, thermosetting at 180°C, after phosphating.
Removable equipment plate on which the wiring elements are mounted.
Cover made of die-cast aluminum.
Optical device: Opal polycarbonate diffuser
Light source: LED CRI ≥80 Ra
• 3000 K
• 4000 K
• Color tolerance 3 MacAdam (3 SDCM)
Cabling: Class I
Power supply 220~240 V / 50-60 Hz
Efficiency data:
Efficiency A+
Protection level IP20
Lifespan (Ta=25°C ) 50000h L80B10
Marks: CE
Regulations:
EN 60598-1
EN 60598-2-1EN 60598-2-2
EN 62031
Safety photobiological lamps and system lamps:
EN 62471
IEC/TR 62778
Rischio esente – GR 0
Directives:
2014/35/EU
2014/ 30/EU
VERSIONS ON ORDER
• Dimmable electronic ballast
• Dimmable DALI electronic ballast (if possible)
• RA90
