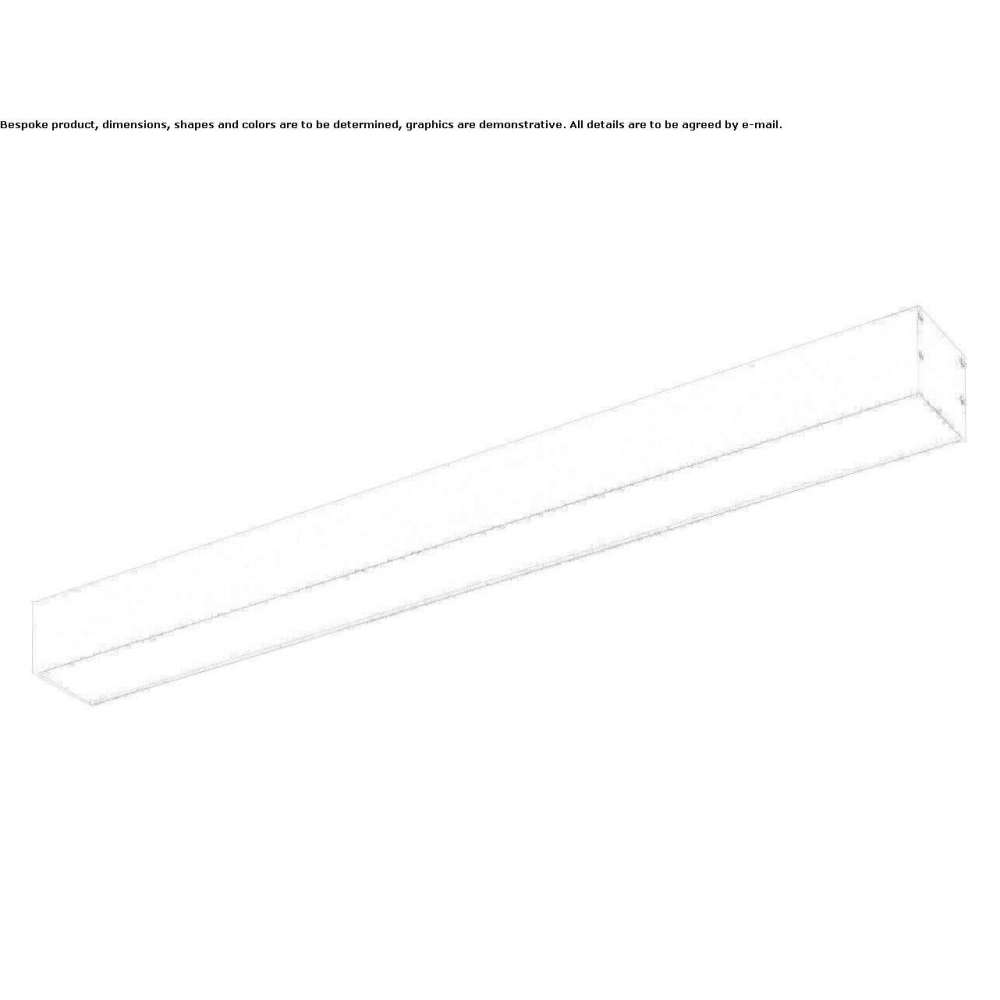

LED hanging lamp Beleti
More info
Inspired by Metalmek Vector L 9730 (not replica Metalmek Vector L 9730)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Metalmek Vector L
Original code: 9730 OP
Product description
VECTOR L 9730 has a body made of extruded aluminum, painted with SOLVENT-FREE, white, black, gray or other color to order, with epoxy-polyester powders, thermosetting at 180°C, after phosphating. Removable hardware plate on which the wiring components are mounted. Die-cast aluminum cap. Diffuser made of opal polycarbonate.
Mountings:
• Surface-mounted luminaire
• Suspended luminaire acc. 4417SP1-2, 4417SP1-3, 4406
• Built-in connector acc. STIVCL
Light emission: Direct, symmetrical
Body: Made of extruded aluminum, painted WITHOUT SOLVENTS, white, black, gray or other colors on request, epoxy-polyester powders, thermosetting at 180°C, after phosphating treatment .
Removable equipment plate on which the wiring elements are mounted.
Diffuser made of die-cast aluminum
Optical device: Diffuser made of opal polycarbonate
Light source: LED CRI ≥80 Ra
/> • 3000 K
• 4000 K
• Color tolerance 3 MacAdam (3 SDCM)
• Lifespan (Ta=25°C) 50,000h L80B10
Wiring: Class I
Power supply 220~240 V / 50-60 Hz
Utility data:
Efficiency A+
Protection level IP20
Marks: CE
Regulations:
PL 60598-1
EN 60598-2-1
EN 60598-2-2
EN 62031
Photobiological safety of lamps and lamp systems:
EN 62471
IEC/TR 62778
Rischio esente – GR 0
Directives:
2014/35/EU
2014/30/EU
VERSIONS ON DEMAND
• Dimmable electronic ballast
• DALI dimmable electronic ballast (if possible)
• RA90
