Aluminum LED hanging lamp Cappeln
More info

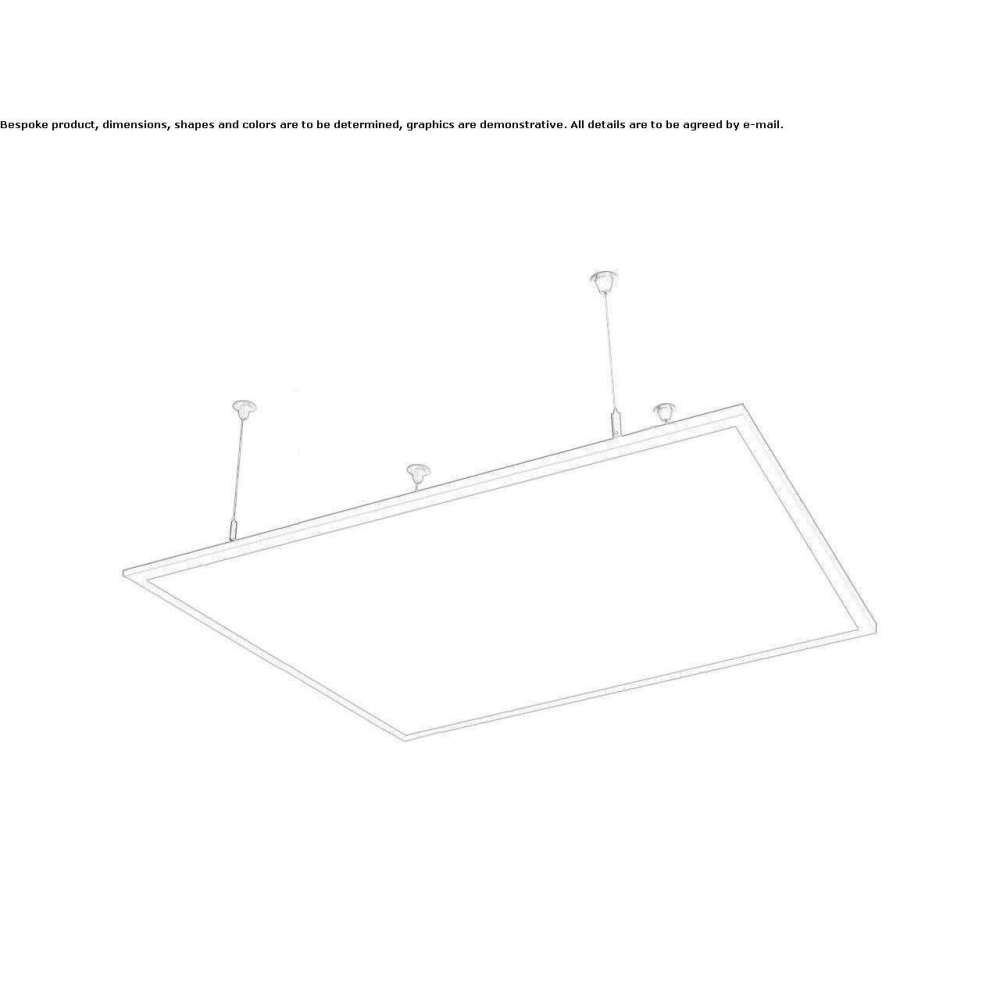

Inspired by Metalmek Hi Panel D-I 9946 MP (not replica Metalmek Hi Panel D-I 9946 MP)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Metalmek Hi Panel
Original code: 9946 MP
Product description
HI PANEL DI is a hanging lamp with a body made of extruded aluminum, painted with SOLVENT-FREE, semi-light white epoxy-polyester powders, thermosetting at 180°C, after phosphating. Microprismatic methacrylate diffuser.
Mountings: Suspended mounting
Light emission: Direct (80%) - Indirect (20%), Symmetrical
Body: Extruded aluminum, SOLVENT-FREE painted, semi-matt white powders epoxy-polyester, thermosetting at 180 °C, after phosphating
Optical device: Microprismatic methacrylate diffuser
Light source: LED CRI ≥90 Ra
• 3000K
• 4000K
• Lifespan (hours) 50,000 (-30° 1 +70°C - Ta=25°C)
• UGR ≤19
Wiring: Class III
Power supply (independent LED driver )
100~240 V / 50-60 Hz
Performance data:
• Efficiency A+
• Protection level: IP20
• Suitable for environments with displays according to in accordance with EN 12464-1 (UGR ≤19)
Marks: CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
br />Photobiological safety of lamps and lamp systems:
EN 62471
IEC/TR 62778
Exempt risk - GR 0
Directives:
2014/35/ EU
2014/30/EU
VERSIONS ON ORDER (if possible):
• PUSH dimmable electronic ballast
• 1-1OV dimmable electronic ballast
• Dimmable ballast electronic DALI
• Emergency unit
Tags
Metalmek, HI PANEL, Interior lighting, Pendant lamps, Office, Lighting, Office pendant lamps, Office lighting, Pendant lamp, Office pendant lamp, Contemporary style pendant lamps, Aluminum pendant lamps, Metal pendant lamps, Extruded aluminum pendant lamps, Lamps LED pendant lamps, Dimmable pendant lamps, Office pendant lamps, Modern style office pendant lamps, Aluminum office pendant lamps, Metal office pendant lamps, Extruded aluminum office pendant lamps
