Inspired by LAB23 Stile (not LAB23 Stile)

Due to the copyright notice, please note that this product is not a

Product description

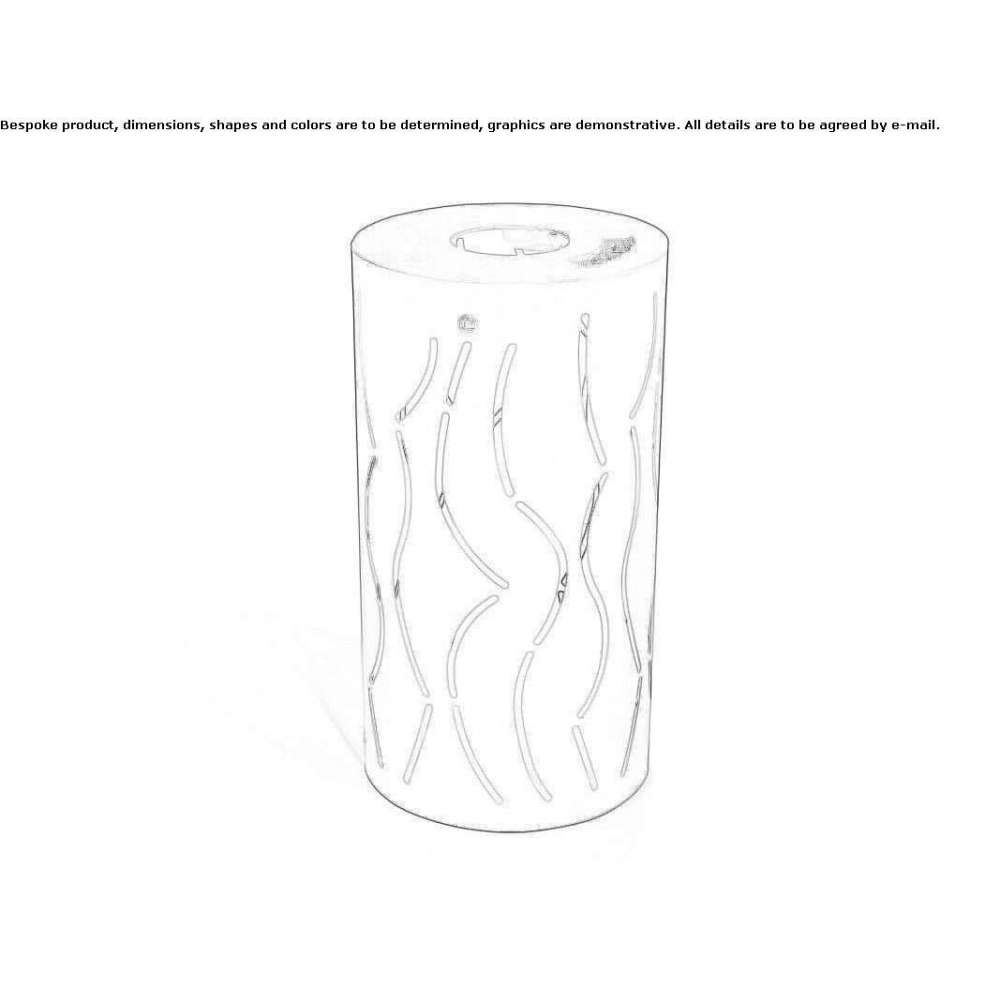

The outer part of the STILE basket is characterized by an engraved curved shape with variable height and width of 10 mm. It is made of 20/10 thick steel.
The inner container is made of galvanized steel, 10/10 thick and 348 mm in diameter. and height 640 mm. At the top of the inner container there are 2 loops that serve as handles for easy removal. The STILE basket cover is made of 30/10 steel. It is attached to the basket structure using a strong hinge, created by assembling elements made of 30/10 steel with 2 M8 screws. The cover is closed using a spring lock with a triangular key. The optional ashtray is placed on the cover, where a special hole is made for welding behind it a 10/10 thick perforated steel sheet with 5 mm diameter holes for extinguishing a cigarette. There are also 2 holes with a diameter of 20 mm. for inserting cigarette butts. The 15/10 thick container is placed along rails welded near the pierced sheet metal. The container can be attached to the ground using special screws (not included), which should be inserted into holes with a diameter of 11 mm. placed at the bottom. It is possible to add a 30/10 thick steel base with a height of 50 mm, curved inward by 33 mm to the outer perimeter of the basket, or a concrete base.
To realize this product, EN10111DD11 steel is used, which is later subjected to sandblasting, cataphoresis and powder coating processes. Such a cycle is intended to ensure protection of painted products in an environment with corrosivity class C4, in accordance with the requirements of UNI EN ISO 12944-2 regulations. The products are finally powder coated with polyester in any color from the RAL palette.
As an alternative to EN10111DD11 steel, production from corten is also available on request. In this case, the material is subjected to a special oxidation process.
The galvanized steel used is EN10346DX51D+Z and, unless otherwise stated, it is not painted.
Container weight 30 kg
Metal base 3 kg
Ashtray capacity 0.5 l
Container capacity 50 l
