Steel tree grill Cajamar
More info
Inspired by LAB23 LAB.SP.001 (not LAB23 LAB.SP.001)
Due to the copyright notice, please note that this product is not a
Product description
Sp001 735 15 kg
Optional: Telaio FRAME
Sp001 735 with telaio 20 kg WITH FRAME
Sp001 900 21 kg
Optional: Telaio
Sp001 900 with telaio 28 kg
Sp001 990 25 kg
Optional: Telaio
Sp001 990 with telaio 32 kg
Sp001 1190 36 kg
Optional: Telaio
Sp001 1190 with telaio 44 kg
Sp001 1440 50 kg
Optional: Telaio
Sp001 1440 with telaio 60 kg
Sp001 1990 110 kg
Optional: Telaio

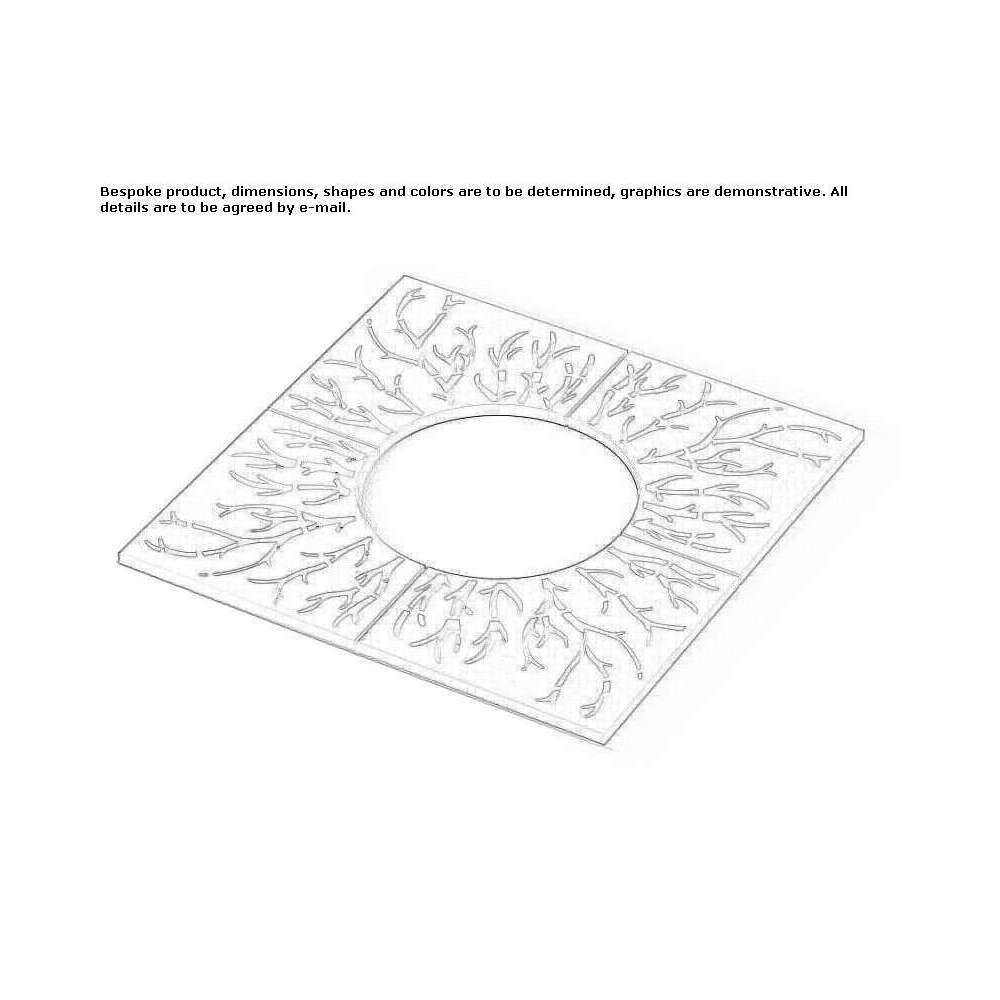

Sp001 1990 with telaio 125 kg Trellis tree LAB SP are made of steel. Various laser cut patterns and dimensions are available. Smaller grids for LAB SP trees. 735 mm, consist of 4 elements: two forming the grille and two forming the peripheral frame. Grilles LAB SP. 990Mm are made of 6 elements: the upper grille is divided into 4 parts and the frame into 2 parts. The larger LAB SP grilles are made of 8 elements: both the upper grille and the frame are divided into 4 parts. The upper part of the grilles is made of laser-cut steel sheet (thickness 50/10), while the frame is made of steel sheet with a thickness of 30/10. If present, the frame is attached to the ground using special screws (not included in the set), which should be inserted onto the 12x18 mm elements. Tree grids are attached to the ground (or frame, if present) using special M6 holes with countersunk heads.
EN10111DD11 steel is used to produce this product, which is then subjected to a cycle of sandblasting, cataphoresis and powder coating. Such a cycle is intended to ensure protection of painted products in an environment with corrosivity class C4, in accordance with the requirements of UNI EN ISO 12944-2 regulations. Ultimately, the products are powder coated with polyester in a selected color from the RAL palette.
