Inspired by LAB23 Drop (not LAB23 Drop)

Due to the copyright notice, please note that this product is not a

Product description

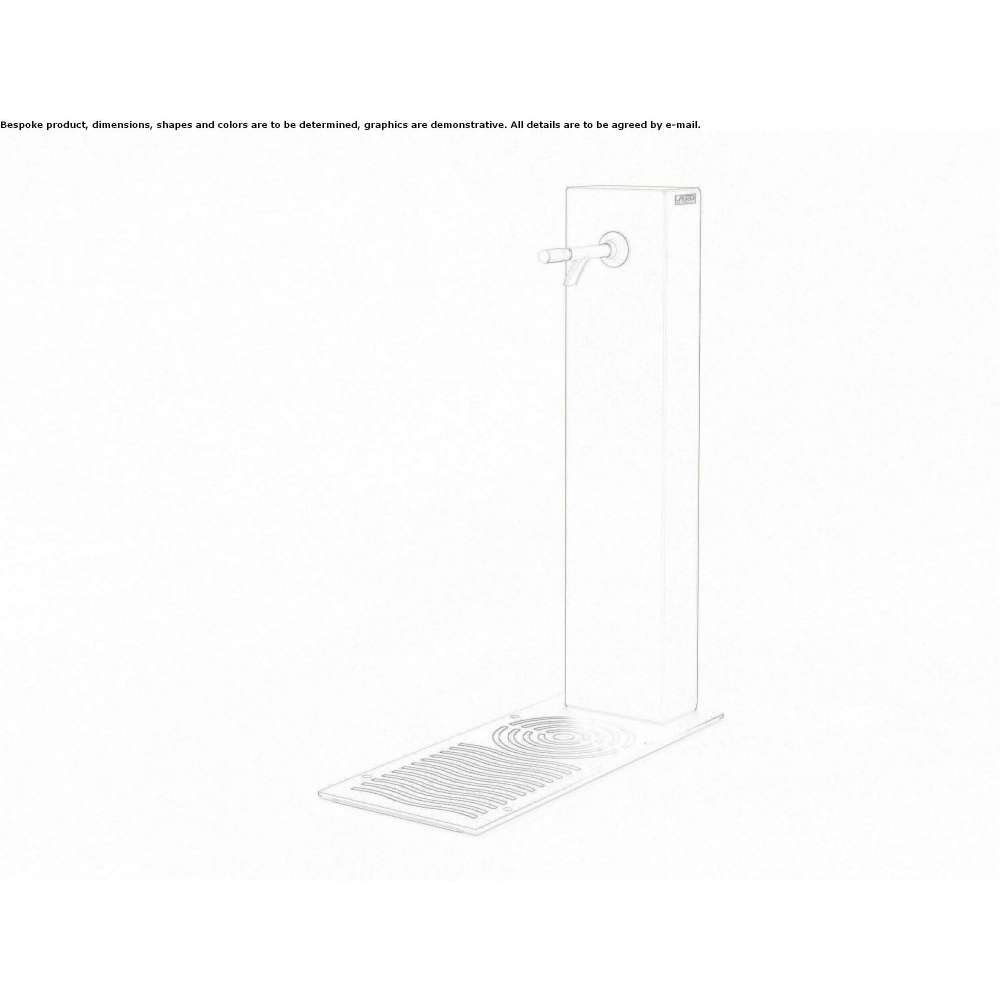

The DROP fountain is characterized by a structure made of steel sheet with a rectangular section of 200x120xh905 mm. The faucet has a button with a return spring, screwed to a 1/2" pipe and connected to a galvanized steel pipe. The structure is attached with 4 screws that should be screwed into holes with a diameter of 12 mm. The tank is made of 20/10 thick steel sheet, dimensions 600 x 245 mm and 100 mm deep. It is also equipped with a drain hole with a diameter of 21 mm. There is a machicolation above the tank (dimensions: 600x300 mm, thickness 50/10), which can be removed to enable cleaning of the tank. The outline of the fountain measures 720x300 mm. At the back of the fountain there is a removable panel enabling the connection of a power pipe.
EN10111DD11 steel is used to make this product, which is then subjected to a cycle of sandblasting, cataphoresis and powder coating. Such a cycle is intended to ensure protection of painted products in an environment with corrosivity class C4, in accordance with the requirements of UNI EN ISO 12944-2 regulations. The products are ultimately powder coated with polyester in any color from the RAL palette.
Weight: 27 kg
