Product description

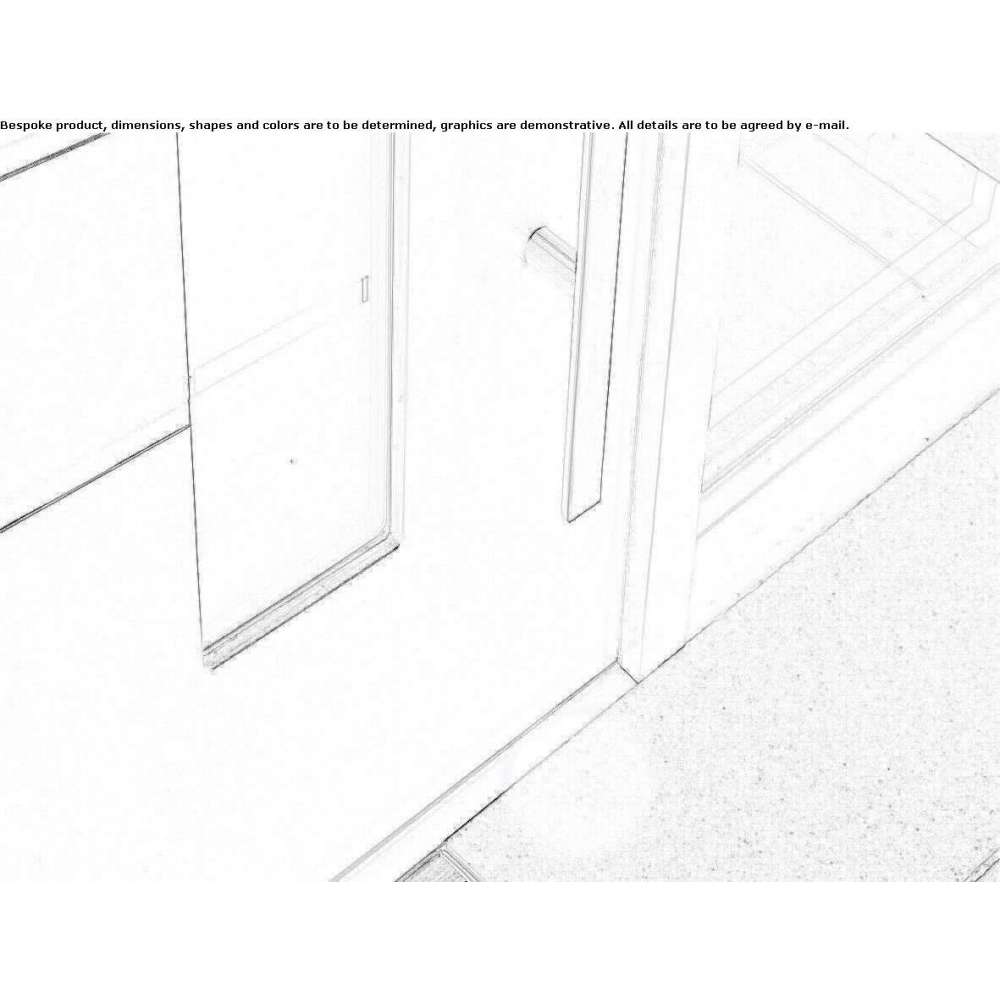

The eHandle hands-free door kit allows you to unlock the front door even with full hands - just slide your foot through the reflector on the floor.
Any person authorized to open the door is automatically recognized by the encrypted transponder signal as they approach the door.
Advantages
Contactless unlocking
Extremely convenient access
High security
Energy-saving transponder
Universal connection to the motor lock
HOPPE brand quality
Touchless unlocking
/>When a person authorized to open the door approaches, a spotlight appears on the floor under the handle. Then simply slide your foot, umbrella or similar object through the reflector and the motorized lock will unlock the door, allowing access.
Convenient access
Enter with maximum ease: it's simple and it's convenient to take bulky items home, plenty of shopping bags, and even small children in your arms, without having to put anything down.
Safe and reliable technology
Communication between the transponder and the control unit uses state-of-the-art AES encryption.
Use of multiple communication between the transponder and the control unit provides much greater security than a conventional key.
EHandle HandsFree for doors can recognize which side of the door where the transponder signal comes from - excluding accidental opening of the door from the inside.
The detection range of the wireless signal is only one meter , which provides additional protection for communication.
The transponder turns off automatically after 30 minutes seconds in the rest position, which means that during this time it stops sending signals and also stops consuming energy.
The selection of different light colors guarantees that the reflector will be clearly visible on various surfaces in front of the door.
Technical data
Operating temperature: -20°C to +60°C
Wireless frequencies: 125 kHz / 868 MHz
Encryption : AES (Advanced Encryption Standard)
Transponder detection range: approx. 1 m
Operating voltage: 8-24V DC
Switch contact load: 24V DC, 1.5 A (max.)
Transmission power: 6.3 mW
Maximum power consumption: 0.7 W
Protection level: IP 44
Electrical connection: universal use (positive or negative control impulse of the electromotive lock to choose from )
Transponder: 2 pieces, with battery (type CR 2450)
Cards: 1 administration card, 1 configuration card, 2 input cards, 2 input shadow cards, 2 transponder shadow cards.
