Inspired by I-Drain® I-Drain® Pro LINEAR (not I-Drain® I-Drain® Pro LINEAR)

Due to the copyright notice, please note that this product is not a

Inspired by: I-Drain® I-Drain® Pro

Product description

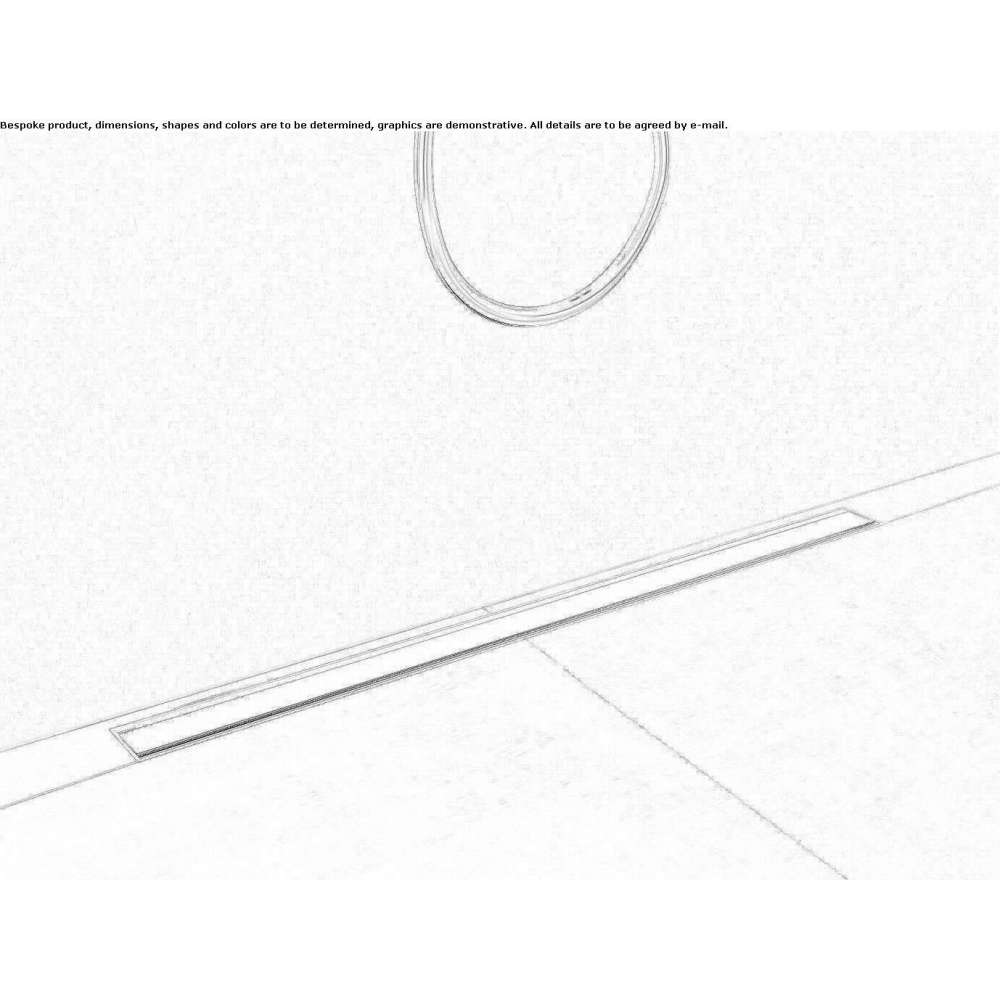

I-DRAIN® PRO LINEAR – SHOWER SOLUTION WITH EASY INSTALLATION
The I-DRAIN® PRO series is a decorative element in your bathroom, characterized by optimal ease of maintenance thanks to the removable siphon and strainer. With an installation height of 54 mm (or 72 mm) (without floor finish) for linear drains, I-DRAIN® provides the lowest possible installation height. I-DRAIN® PRO Linear is sold without a decorative grid. This can be purchased separately. There are 5 different grates to choose from. The drain also works with decorative grilles with a PVD coating. They are available in 6 colors.

Details:
I-DRAIN® PRO Linear 54
- Deep-drawn drain body made of high-quality stainless steel
- Pre-glued waterproofing membrane on the drain body
- Easy installation
- Available in 7 lengths: 600 – 700 – 800 – 900 – 1000 – 1100 – 1200mm
- Installation height: 54mm
> - Connection diameter: 40mm
- Siphon height: 30mm
- Flow rate: 27.5l/min.
- Grille must be purchased separately
- PVD grille, optional coating available

I-DRAIN® PRO Linear 72
- Deep-drawn drain body made of high-quality stainless steel
- Pre-glued waterproofing membrane on the drain body
/> - Easy installation
- Available in 7 lengths: 600 – 700 – 800 – 900 – 1000 – 1100 – 1200mm
- Installation height: 72 mm
- Connection diameter: 50 mm
- Siphon height: 50mm
- Flow: 27.5l / min.
- Grille must be purchased separately
- PVD coated grille available optionally

Technical data

(mm)
IP4M06001X1 - IP5M06001X1
609x633
IP4M07001X1 - IP5M07001X1
709x733
IP4M08001X1 - IP5M08001X1
809x833
IP4M0900 1X1 - IP5 M09001X1
909x933
IP4M10001X1 - IP5M10001X1
1009x1033
IP4117001X1 - IP5M11001X1
1109x1133
IP4M12001x1 - IP5M12001x1
1209x123333 333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333333
