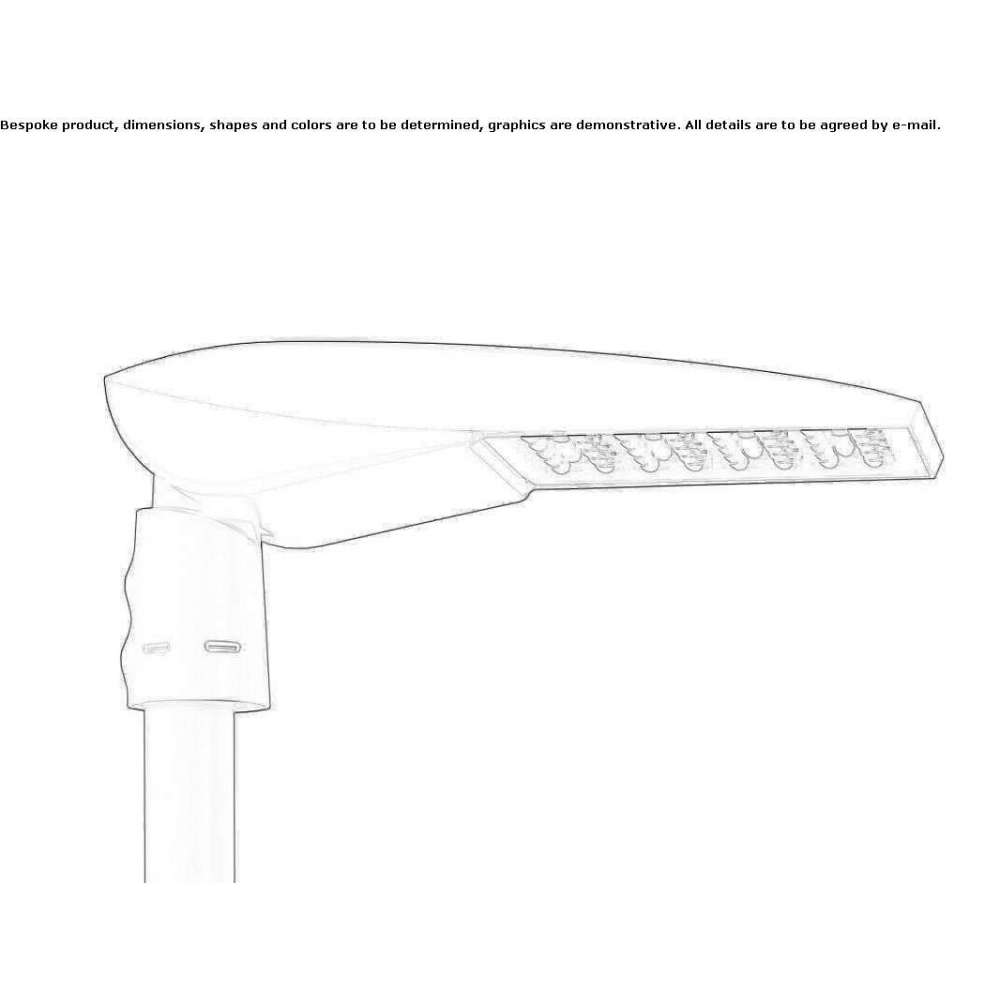

Inspired by Cariboni Group Kai POLE SYSTEM (not replica Cariboni Group Kai POLE SYSTEM)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Cariboni Group Kai

Product description

range of street luminaires with LED light sources consisting of three models KAI SMALL, KAI SMALL X and KAI MEDIUM. The extremely compact series is characterized by particularly high lighting efficiency. Suitable for illuminating traffic junctions, urban and rural roads with heavy traffic, and pedestrian and bicycle paths. Possibility to replace the LED module without using tools and automatic power cut-off. Installation on Ø 76 mm poles with or without an arm. Supplied with a reduction system for poles Ø 46 - 60 mm. Adjustable device for anchoring the pole without having to open the street fixture. Vertical configuration tilt (pole side): 0° + 20°, in 5° steps; horizontal configuration inclination (strap): 0° - 20°, in 5° steps. Colors: Sablé 100 Noir dark gray and RAL 9006 gray. Optics: LT-C cycle path, LT-M street (street width to pole height ratio = 1) and LT-L street (street width to pole height ratio = 1.25) . Color temperature: 3000K and 4000K. CRI (color rendering index): ≥ 70. Average LED life [email protected]@Ta25°C TM21. Available control systems: virtual north self-learning, 1-10V, DALI and PLC and on-demand wireless remote control. HM3 final code versions are supplied with midnight self-learning systems, selectable presets and 1-10V voltage. HM4 final code versions are supplied with midnight self-learning systems which can be programmed at customer request or programmed to work with DALI protocol. Luminaire without photobiological risk (EXEMPT GROUP) compliant with the EN 62471:2008 standard and subsequent IEC/TR 62471:2009. Classification: CUT OFF.
Nominal voltage 230 V 50 Hz
Insulation class Class II
IP protection level IP66
Impact protection IK08
Color temperature 3000 K, 4000 K
Weight 13.50 kg, 6.50 kg, 8.00 kg
ENEC / CE labels and certificates
5-year warranty for LED fixtures
