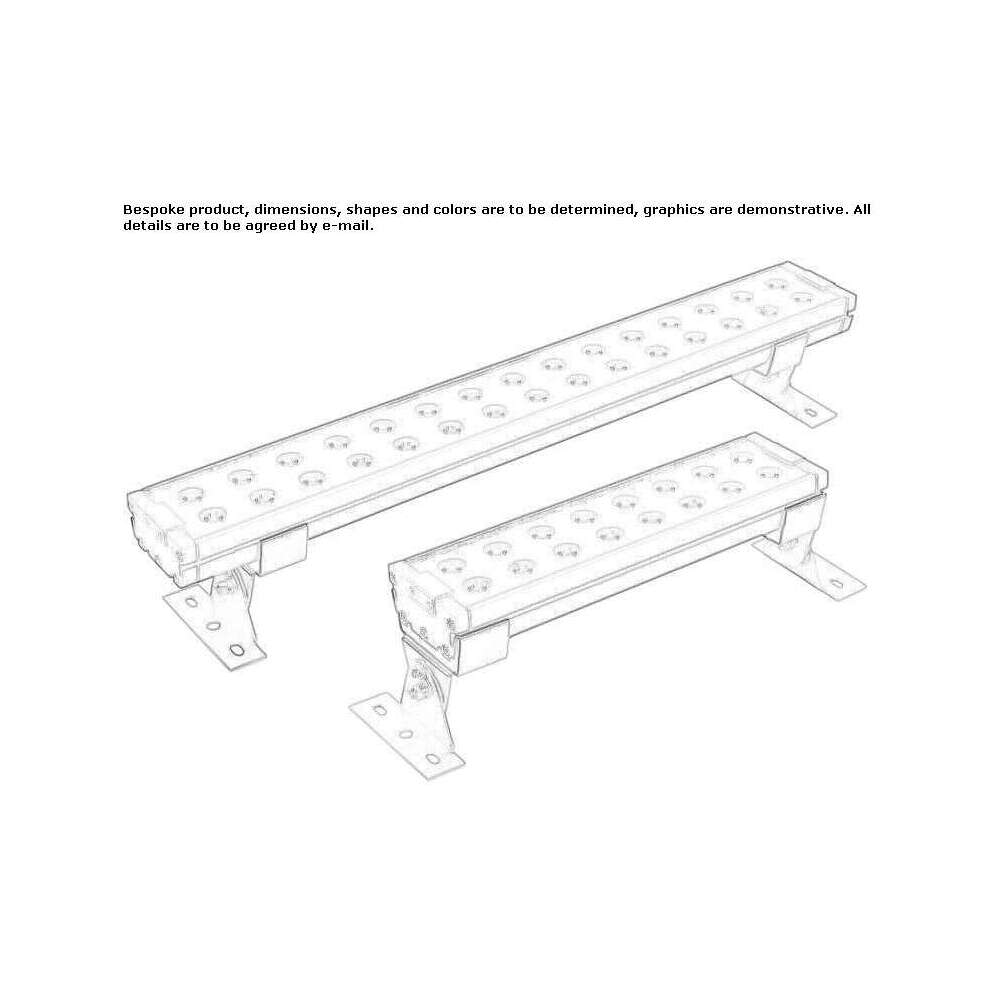

Powder-coated aluminum RGB LED wall washer Sile

More info

Inspired by Proled Bar DOUBLE TRILED RGB IP65 (not replica Proled Bar DOUBLE TRILED RGB IP65)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Proled Bar

Product description

PROLED DOUBLE TRILED BARS IP65 are ideal for illuminating large surfaces, e.g. buildings or walls in outdoor areas. They are also suitable for ambient lighting in indoor applications. Thanks to high-power 3-in-1 RGB LEDs, TRILED BAR ensures uniform color mixing.
Dimmable, auto. color change, control via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF via MULTI or PRO CONTROLLER power supplies.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC Common cathode (CC)
Powder coated gray aluminum housing, 4 mm tempered glass
Electrical connection
1x cable 0.4 m H05RN-F 4x 0.75 mm² with 4- PIN connector IP68 male
1x cable 0.4 m H05RN-F 4x 0.75 mm² with 4-PIN female connector IP68
Maximum quantity per power input 3 m
Average life 50,000 h at L80 /B10
Operating temperature range -10° C to +45° C
PHOTOMETRIC DATA
LED type RGB LEDs 3 in 1
Luminous flux
red 850 lumens at 0.6 m
green 2100 lumens at 0.6 m
blue 600 lumens at 0.6 m
r+g+b (white) 3500 lumens at 0.6 m
Wavelength
red 620 nm
green 525 nm
blue 460 nm
Beam angle 25°
