Due to the copyright notice, please note that this product is not a replica

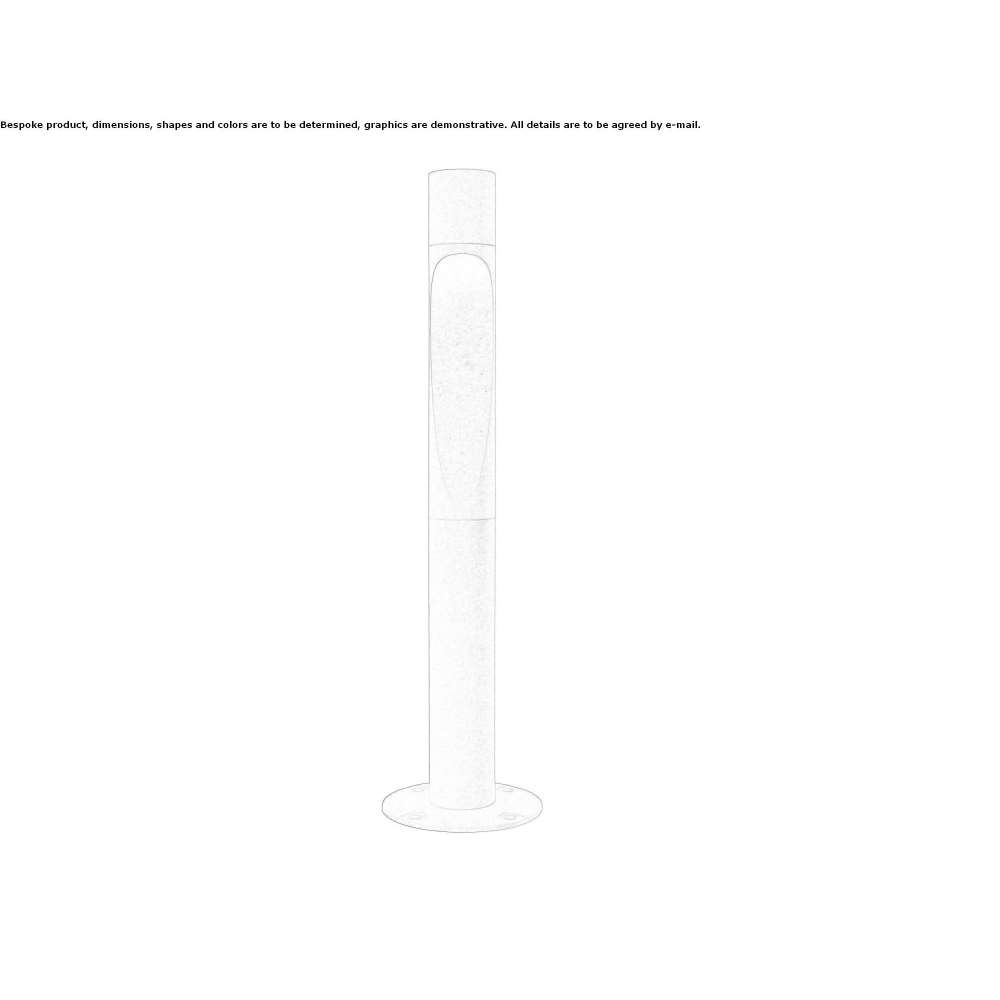

Inspired by: LP Flindt
Product description
The fixture emits asymmetric, non-glaring, wide light directed downwards. The light creates an organic pattern on the surface on which the post is mounted. Installation Terminal strip location: Top. Loop: Approved, max. 5x6mm². Driving position: On top. Installation on the ground on a post: height: 1700 mm inclusive. housing head in the ground part 600 or 900 mm. Post with anchor module: H: 1110/1410 mm including pins, mounting head, in the ground anchor unit 310 mm. Post with base plate for surface mounting: H 800/1100mm including washer mounting head. Post Wed. Ø115mm. Technical note The LED power supply is integrated with the luminaire head. All LED performance information is measured as system power. Finish Aluminum color or Corten color. Textured, powder-coated surface. Light source and energy class Energy class LED light source 3000K 15W Materials Top: Cast aluminum. Reflective part: Cast aluminum. Pole: extruded aluminum. Base plate: Die-cast aluminum. Class Degree of protection IP65. Protection against electric shock: level I: grounding, level II: without grounding. IK10.
Technical data
Width x height x length (mm) 115 x 800 x 115 max. 9.8 kg 115 x 1100 x 115 max. 11.0 kg
Tags
LP, Christian Flindt, Flindt, Outdoor lighting, Light posts, Lighting, light posts, Contemporary style posts, Aluminum posts, Metal posts, LED posts
