Outdoor LED walkover stair lamp Hlohovec
More info
Inspired by Proled Alpha R (not replica Proled Alpha R)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Proled Alpha
Product description

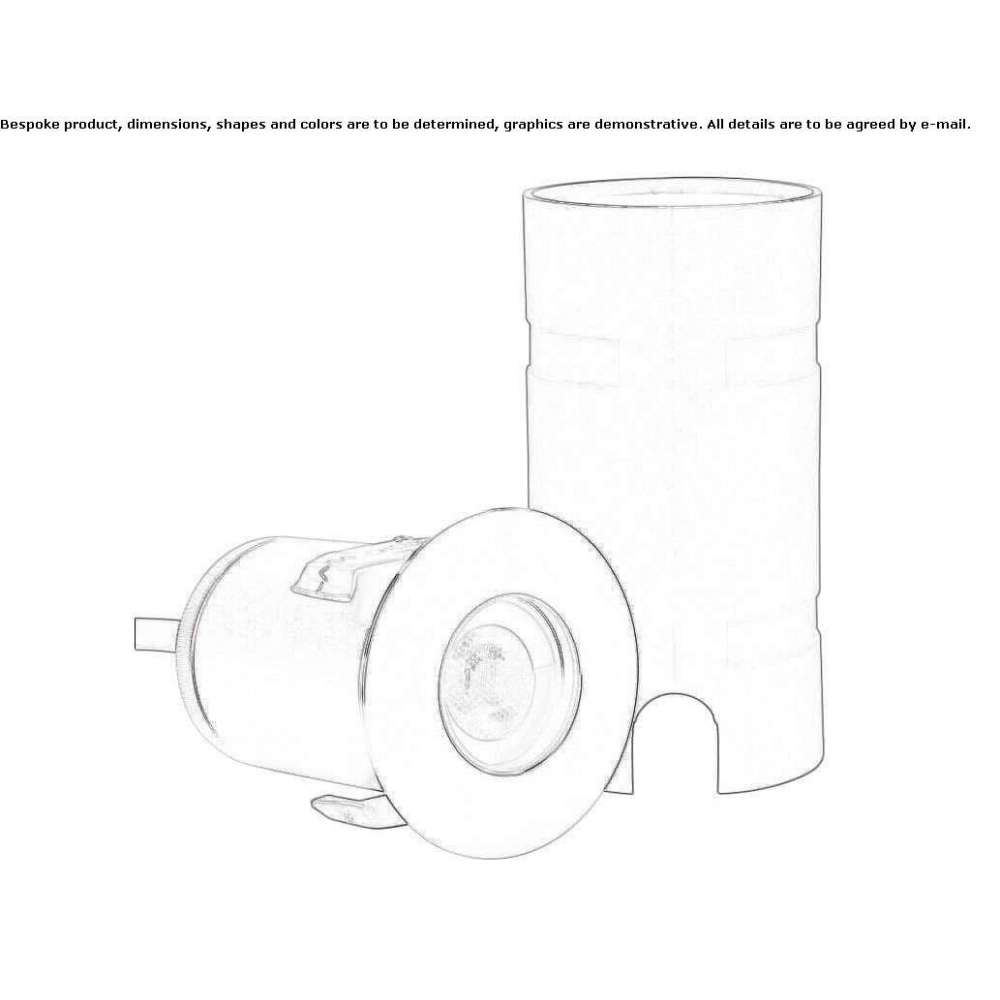

The PROLED INGGROUND series is designed for integration with the floor and offers various possibilities for architectural lighting design.
incl. PVC mounting sleeve.
TECHNICAL DATA
IP Rating IP67 (for outdoor use)
24 VDC power source
316 stainless steel ring
Housing anodized aluminum silver color, 8 mm tempered glass
Mounting sleeve PVC material
Load capacity full surface = 2000 kg
Electrical connection 1x cable 1 m H05RN-F 2x 0.75 mm² for open cables
Average life 50,000 h at L80/B10
Operating temperature range -10° C to +45° C
PHOTOMETRIC DATA
Diode type CREE 2 Watt high power
Luminous flux
neutral white 150 Lumens
warm white 150 lumens
Color temperature
neutral white 4000 K
warm white 3000 K
CRI80
beam angle 25°
