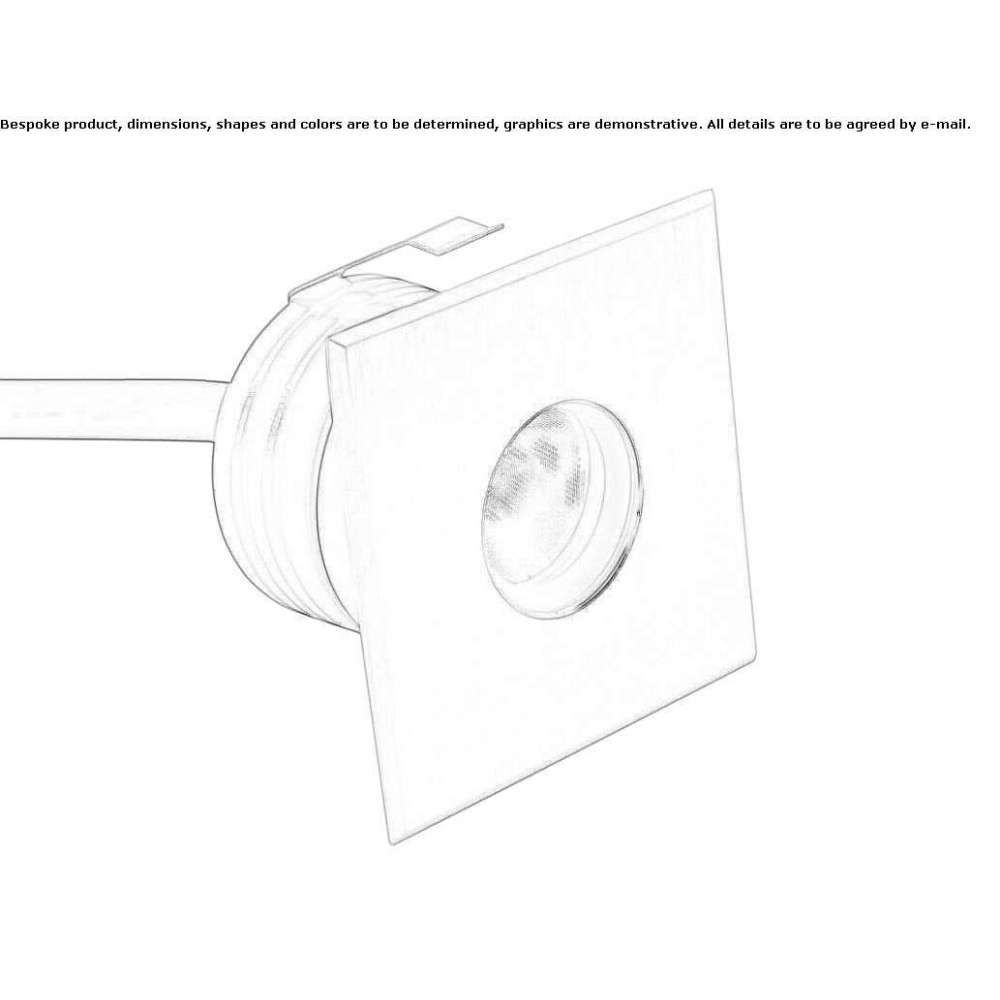

Outdoor RGB LED stair lamp Plasy

More info

Inspired by Proled 1S THIN TRILED RGB (not replica Proled 1S THIN TRILED RGB)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Proled 1S

Product description

The PROLED INGGROUND series is designed for integration with the floor and offers various possibilities for designing architectural lighting.
dimmable, automatic. color change, control via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF via MULTI or PRO CONTROLLER.
Very small installation depth.
Controller (24 V ➔ CCU) in a separate room metal box included. An additional 24 VDC common cathode (CC) power supply is required.
TECHNICAL DATA
IP Rating IP67 (for outdoor use)
24 VDC common cathode (CC) power source
Ring 316 stainless steel
Aluminum housing, powder-coated gray, tempered glass 7 mm
Load capacity over the entire surface = 1100 kg
Electrical connection 1x cable 0.5 m H05RN-F 4x 0, 75 mm² to open cables
Average life 50,000 h at L80/B10
Operating temperature range -10° C to +45° C
PHOTOMETRIC DATA
LED type RGB LEDs 3 in 1
Luminous flux
red 25 lumens
green 50 lumens
blue 10 lumens
r+g+b (white) 80 lumens
Wavelength
red 620 nm
green 525 nm
blue 460 nm
Light angle 30°
