Inspired by iGuzzini Light Up ORBIT (not replica iGuzzini Light Up ORBIT)
Due to the copyright notice, please note that this product is not a replica
Inspired by: iGuzzini Light Up
Product description

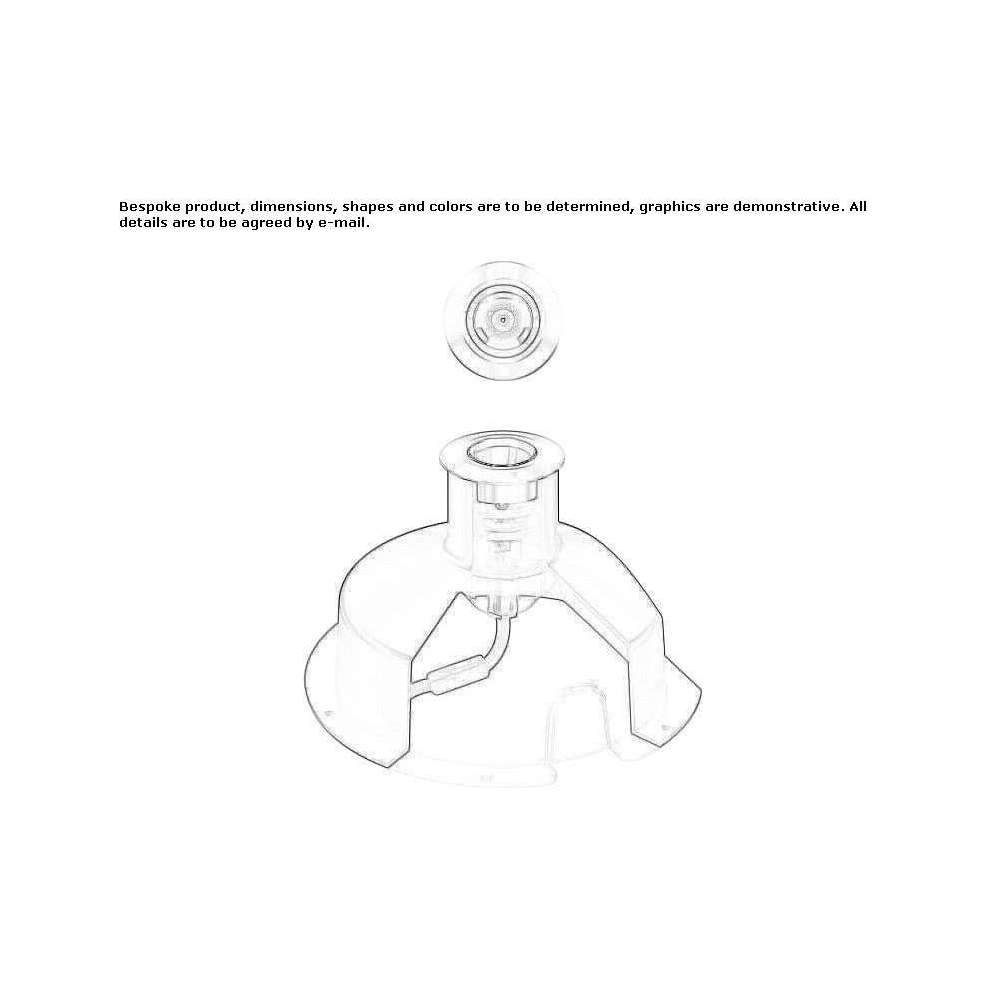

Light Up Orbit - stainless steel body • Recessed luminaires for floor/ground, wall and ceiling (except ø 80 mm) intended for use with LED light sources. • Possibility of surface mounting without frame housing . • Includes body and frame housing. • AISI 304 stainless steel body and frame assembled without visible screws, tempered safety glass; A2 stainless steel cable gland complete with outgoing 2x1 mm² power cable. The cable is equipped with IP68 transpiration protection. • Polypropylene plastic housing must be ordered separately • Optics with plastic lenses or reflectors. • Safe low voltage power supply at constant current (350/ 500/700 mA depending on the type of recessed luminaires) must be ordered separately. • Resistance to a static load of 2000 Kg using a frame housing ordered separately. • Product toppled according to EN 60598-2-13 (test torsional and shear strength). • Installation is prohibited in areas where snow plows are used at speeds above 50 km/h. • Compact dimensions of the fixture (<100 mm). • IP68 rated for both product and cable using IP68 connectors. The product is not intended for installation in swimming pools and fountains.
