LED walkover stair light Senan
More info
Inspired by iGuzzini Lun-Up Evo IN-GROUND (not replica iGuzzini Lun-Up Evo IN-GROUND)
Due to the copyright notice, please note that this product is not a replica
Inspired by: iGuzzini Lun-Up Evo
Original code: AGGR000509
Product description
Lun-Up Evo recessed ground light is a floor/ground recessed fixture designed for use with high power monochromatic LED light sources.
• Available with Flood and Wide-Flood optics.
• Recessed installation ground/floor using special frame housing.
• Consists of body and frame housing, to be ordered separately, in 1/4 circle shape.
• Body made of high-performance black thermoplastic material PPS (polyphenylene sulfide ); tempered soda-lime glass with custom black screen printing, 8 mm thick, attached with silicone to a stainless steel plate with self-locking inserts; the glass + plate assembly connects perfectly to the body thanks to stainless steel nuts and a silicone sealing insert.
• Supplied with high resolution "OptiBeam" reflectors made of metallized thermoplastic material with Flood and WideFlood optics.
• Monochrome version with 24Vdc electronic circuit, neutral or warm white LED and power supply must be ordered separately.
• In the lower compartment, the product is equipped with a plastic multi-pole PG9 cable L = 350mm with transpiration protection with quick connector suitable for cables with a diameter of D=7 ÷ 13mm; 3-pin male/female drop connector and IP68 male connector are available as through-wiring accessories.

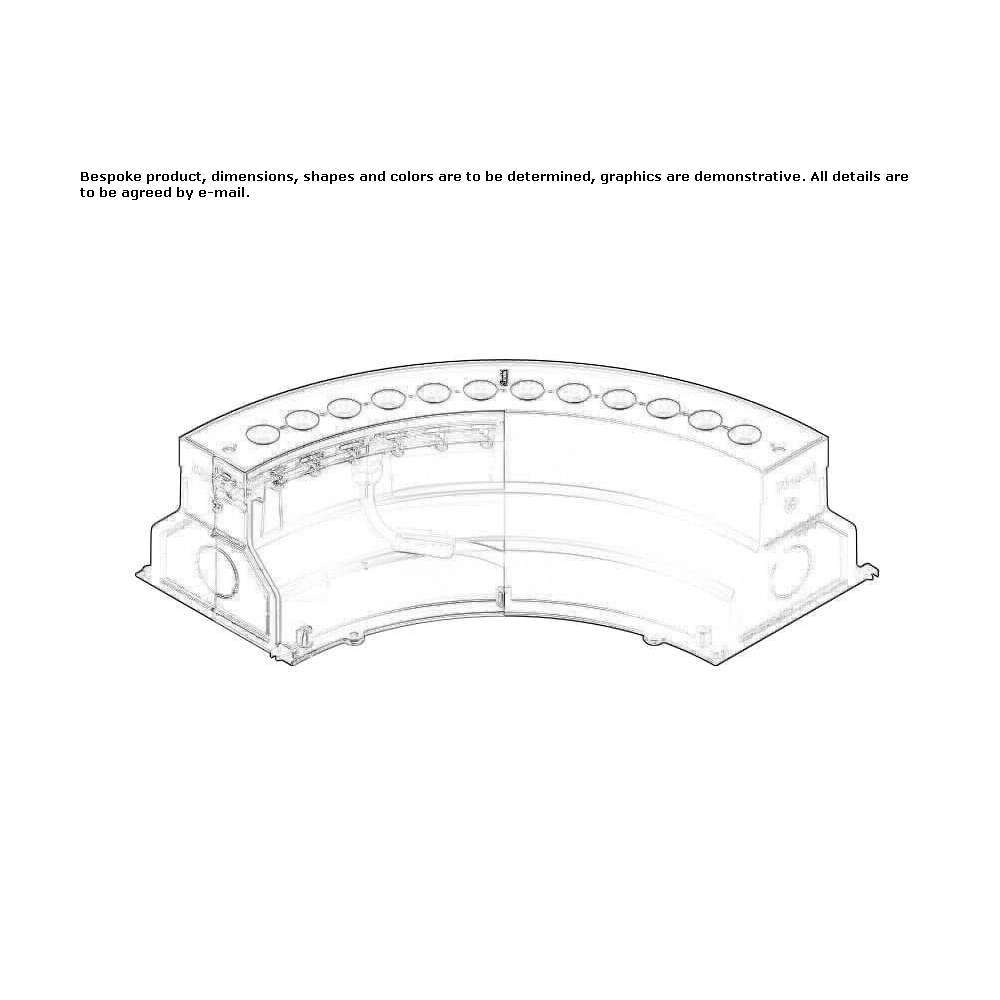

• Floor/ground mounting plastic frame with top cap; the set includes a connector enabling the connection of two or more subsequent frames.
• The product is connected to the frame by two A2 stainless steel mounting screws.
• Contact temperature <40°C.
• Resistance to static load: 2000 kg.
• All screws used are made of A2 stainless steel.
• BLE - DALI interface means that all DALI products can be managed via Bluetooth Low Energy (more information).
