Linear light profile Winenne
More info
Inspired by Ideal Lux Fluo CORNER (not replica Ideal Lux Fluo CORNER)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Ideal Lux Fluo
Product description

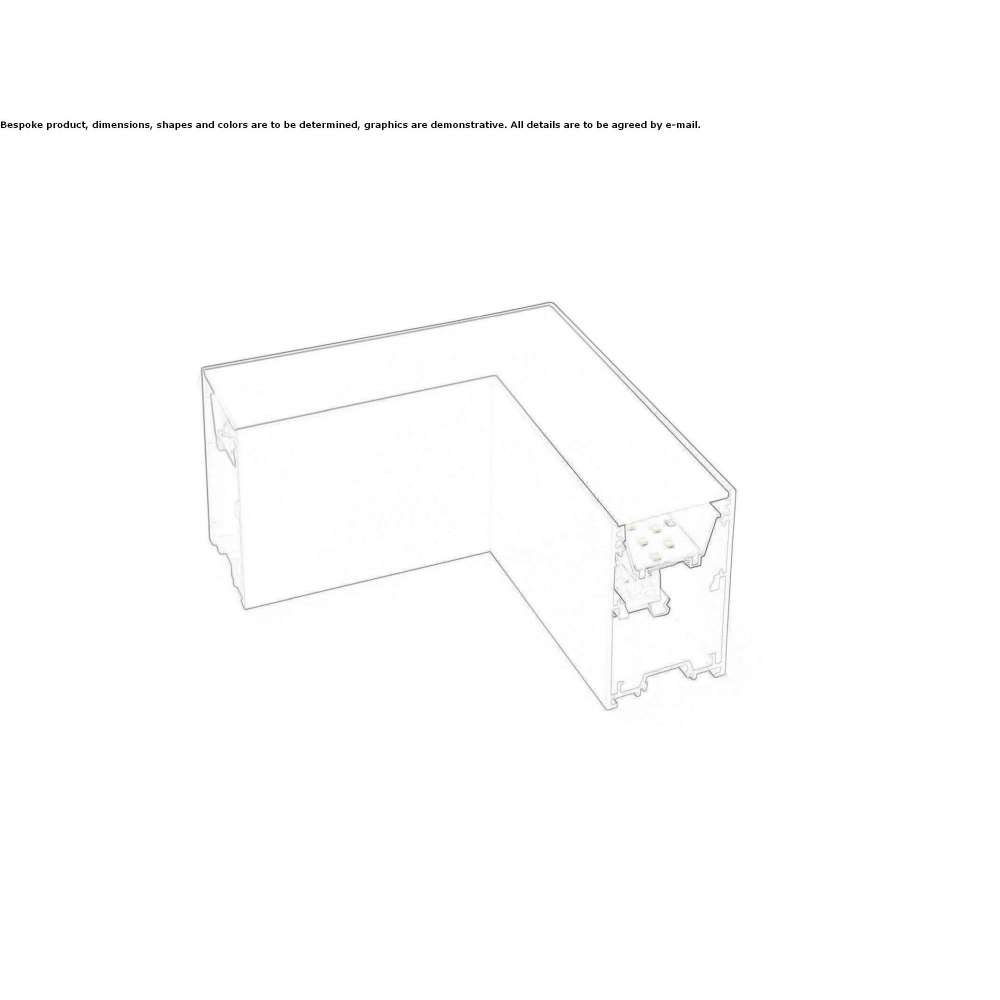

Fluo Corner is a module for the Fluo lighting system.
Insulation class: 1
Protection level: 20
Emission: Direct
Source: LED 8W
LED properties: LED SMD SAMSUNG
Light flux of the source: 950 / 1000 lm
Useful luminous flux: 690 / 720 lm
Color temperature (Kelvins): 3000 / 4000 K
CRI :> 80
Control: On-Off
Construction material: Aluminum
Construction finish: Gray aluminum, matte black, matte whiteLinear lamp system made of extruded aluminum, body 50 mm wide and 80 mm high. Modules available in two lengths: 1200 mm and 1800 mm, which can be combined according to the desired arrangement. The system is available in three different configurations: a WIDE diffusion module, a BI-EMISSION module with a component for indirect lighting and an ACCENT module with glare control (UGR < 13); integrated LEDs, selectable color temperature 3000K or 4000K, initial binning ≤3 -Step MacAdam, protection level IP20, insulation class I; LED lifespan 50,000 h L70B50. The system is available in anodized aluminum, white and black and can be installed in various ways: single or continuous line for ceiling mounting; suspended or mounted in plasterboard ceilings. Controller included, integrated into the luminaire, available in 1-10 V, DALI and Push dimmable versions. Suitable for places where professional lighting with a minimalist design is required, such as offices and shops.
Technical data
L 151 x H 80 x W 151 mm
