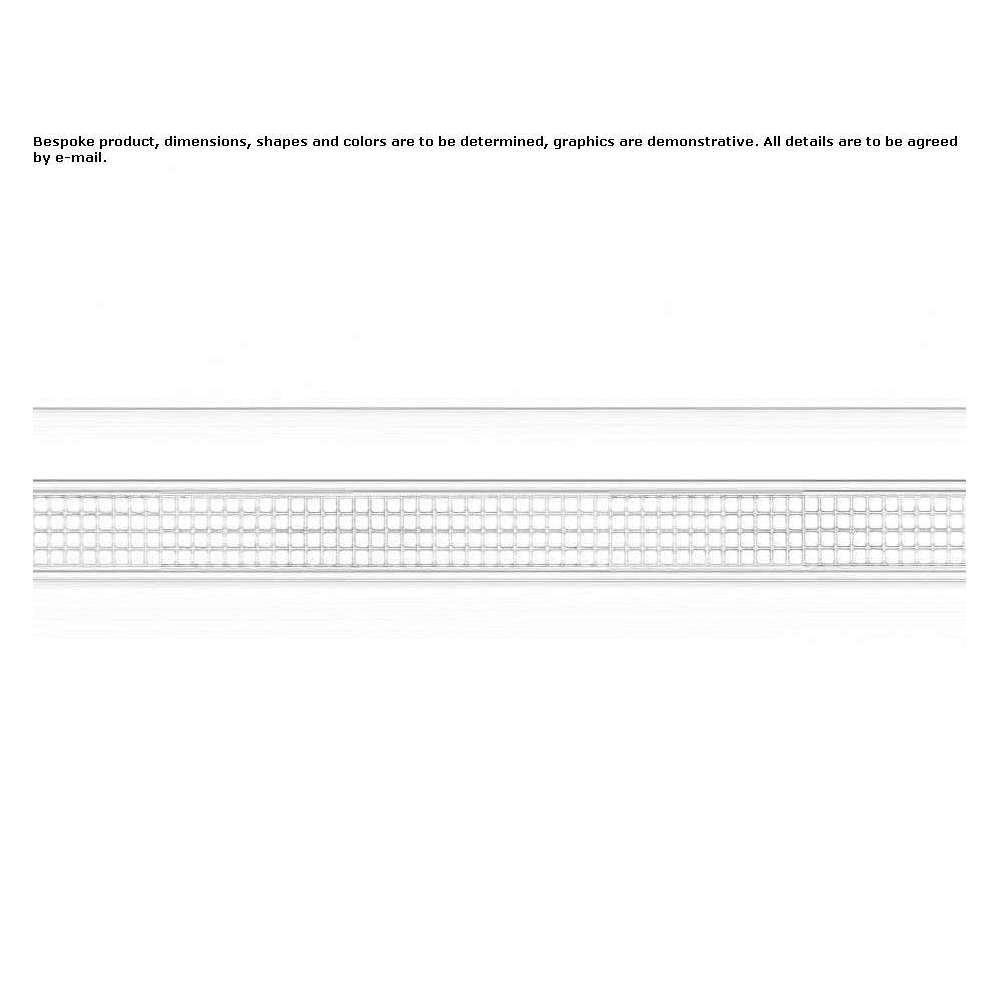

Due to the copyright notice, please note that this product is not a replica
Inspired by: Artemida A.39
Product description
A.39 Suspension/Ceiling Controlled Emission is a profile for linear, ceiling or hanging lighting. LED optical system with controlled emission. 65° UGR and luminance control (EN 12464). A patent-pending, proprietary optical system consisting of a thin black grid with square meshes and a system of square plano-convex lenses with an appropriate light distribution angle. The inner part of the mesh is painted white and has a high reflectivity, so that the light falling on the mesh is recovered in the A.39 body. Thanks to this system, the mesh is "cut off" at the required angle. The convex lens profile has been designed using optical imaging techniques, thanks to which the emission is limited to the 65° range required by the EN 12464 standard. UGR<19 The luminance angle is 65° and more: <3000 cd/m2. The grid placed above the lenses allows only rays falling on the lenses within the required exit angle limits. Rays exceeding these limits are recovered and redirected inside the light box (if the ray hits a white surface) or canceled out (if the ray hits a black edge). FEATURES Emission: Direct Emission / Direct Emission + Indirect Emission Elements: Linear elements / Corner elements LED technology: Standard / Integralis® Color: Black / Silver / White Dimmer: Without dimmer / Dimmable: Dali / Dimmable: APP / Dimmable: APP, DaliA.39 integrates the INTEGRALIS® system INTEGRALIS® combines sanitization effectiveness with light efficiency and design beauty. INTEGRALIS® also integrates with both the environment and the moments of life through the interpretation of rhythms and needs of humanity. INTEGRALIS® was born from Artemida's scientific and technological research and humanistic and social vision. INTEGRALIS® is an innovative and sustainable light platform aimed at conscious and responsible use for the benefit of the environment. PATENT PENDING INTEGRALIS® is integrated into many products from the Artemida collection, enabling the improvement of the safety and quality of the human living environment in various contexts.
Technical data
Length: 118 / 148 / 237 / 296 / 7.5 cm
