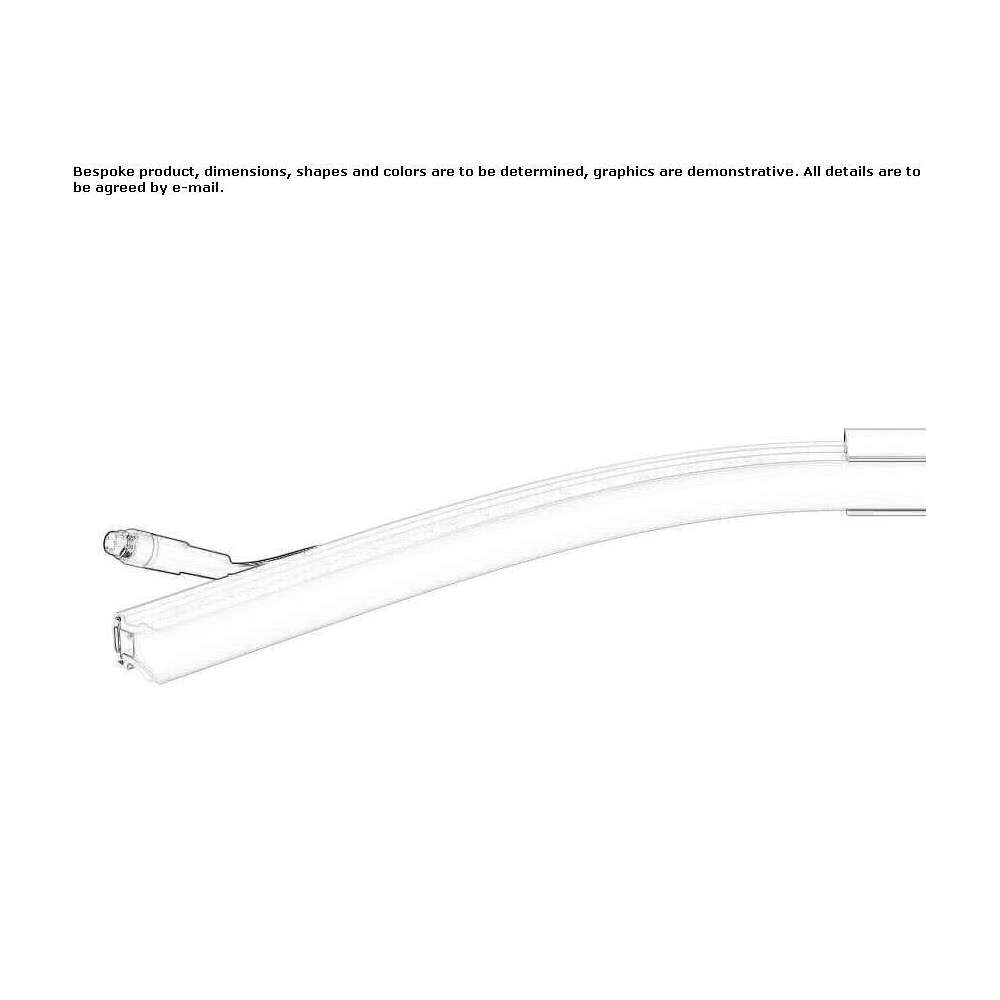

RGB linear lighting profile for LED modules Baicoi
More info
Inspired by iGuzzini Underscore InOut - TOP BEND (not replica iGuzzini Underscore InOut - TOP BEND)
Due to the copyright notice, please note that this product is not a replica
Inspired by: iGuzzini Underscore InOut
Product description
Highlight InOut Side Bend 10mm
• Lengths from 254mm to 7004mm.
• 21 possible combinations.
• Profile mounting (straight lines) or clip mounting (curved lines).
• DALI and DMX interface.
• IP68.
• *Values refer to white Top Bend versions. For all other versions, please refer to the technical information for your specific product code.
• Class III 20 J shock protection IP68: Total protection against dust ingress, Protection against the effects of prolonged immersion
Highlighted InOut Side Bend 16mm
• Linear fixture with monochromatic (2900K-4500K), RGB or Tunable White LEDs for installation in fountains and areas around swimming pools (not suitable for installation inside swimming pools).
• Surface mounting using AISI steel 316 stainless steel terminals.
• Based on a flexible white 24 Vdc circuit, available in 6 lengths: 254/504/1004/2004/3004/7004 mm.
• PWM LED circuit is fully encapsulated according to with IP68 protection degree and highly efficient white (external) and opal (emitting surface) polymer cover: the material allows use and installation at a maximum temperature of 45°C in air and 25°C in water.
• Water must have a Value pH between 7 and 8.
• Uniform illumination is ensured with no visible spots throughout the entire strip profile up to the end parts.
• Complete with a single output cable L=5000.
• Complete with stainless steel wires that limit plastic deformation of the body that could otherwise damage the LED circuit.
• Resistant to seawater according to EN60598-2-18, UV radiation and solvents.
• Resistant impact resistance IK10.
• Contact temperature <40°.
