Anodized aluminum linear lighting profile Nijkerk
More info
Inspired by Eden Design °Ledline 25 (not replica Eden Design °Ledline 25)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Eden Design °Ledline
Product description

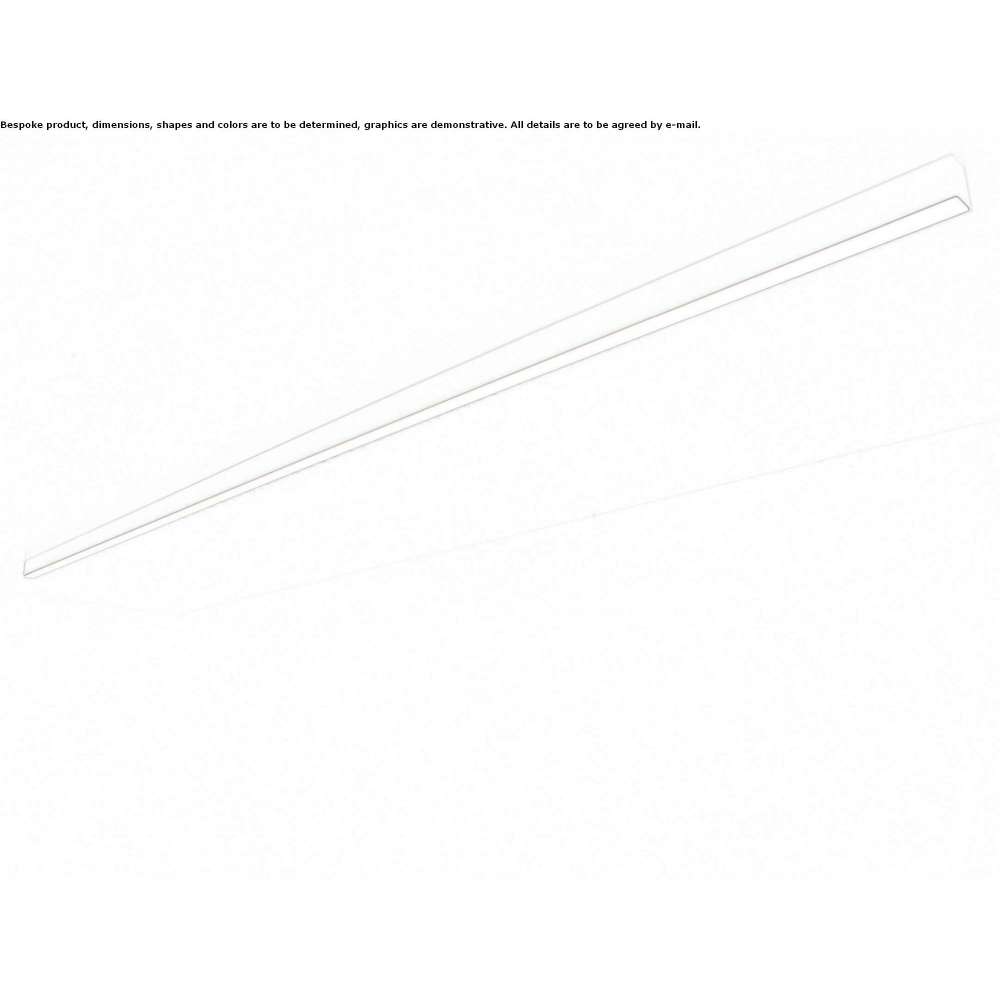

° LEDLINE 25 is a linear LED lighting profile made of aluminum that can be mounted on the wall or ceiling.
Technical data:
material: anodized, coated aluminum
weight: 0.8 kg/m - 0 .52 lb/ft
voltage: 24Vdc
cri: >90
power: 13 or 28W/meter
dal: DT6 option supported
LL25.LBTK led modules possible cuts every 8 cm
Length:
2000 standard length
100 - ... non-standard length
Body color:
BK: matte black ral 9011
WH : white matt ral 9016
AL: aluminum color ral 9006 (only on order)
Type:
SM: for surface mounting
PD: suspended
K
WW.13 2700K | 13W | 960 lm/m
WW2.13 3000K | 13W | 1020 lm/m
NW2.13 4000K | 13W | 1020 mb/m
WW.28 2700K | 28W | 1650 lm/m
WW2.28 3000K | 28W | 1780 lm/m
NW2.28 4000K | 28W | 1850 lm/m
TW tunable white - on order
Accessories:
LL25.EC.BK led line 25 Black cap
LL25.EC.WH led line 25 White cap
/>LL25.EC.AL led line 25 Aluminum cap Continuous lines of light, without restrictions. Each LED module can be cut every 8 cm, giving architects and lighting designers great flexibility. The LED line is characterized by very good efficiency. A technologically advanced diffuser is used that blocks as little light as possible and still provides an opal appearance. The LED line can be surface-mounted, recessed or suspended. It offers two control options: DALI and 1-10V. Available in anodized aluminum, black or white.
Tags
Eden Design, °ledline, Indoor lighting, Linear lighting profiles, Lighting, linear lighting profile, Contemporary Style Linear lighting profiles, Aluminum Linear lighting profiles, Metal Linear lighting profiles, Linear lighting profiles made of anodized aluminum, Linear lighting profiles for LED modules, Half - Recessed linear lighting profiles, Wall-mounted linear lighting profiles, Ceiling-mounted linear lighting profiles, Linear / LED profile / opal lampshade
