Inspired by Proled Alliance (not replica Proled Alliance)

Due to the copyright notice, please note that this product is not a replica

Product description

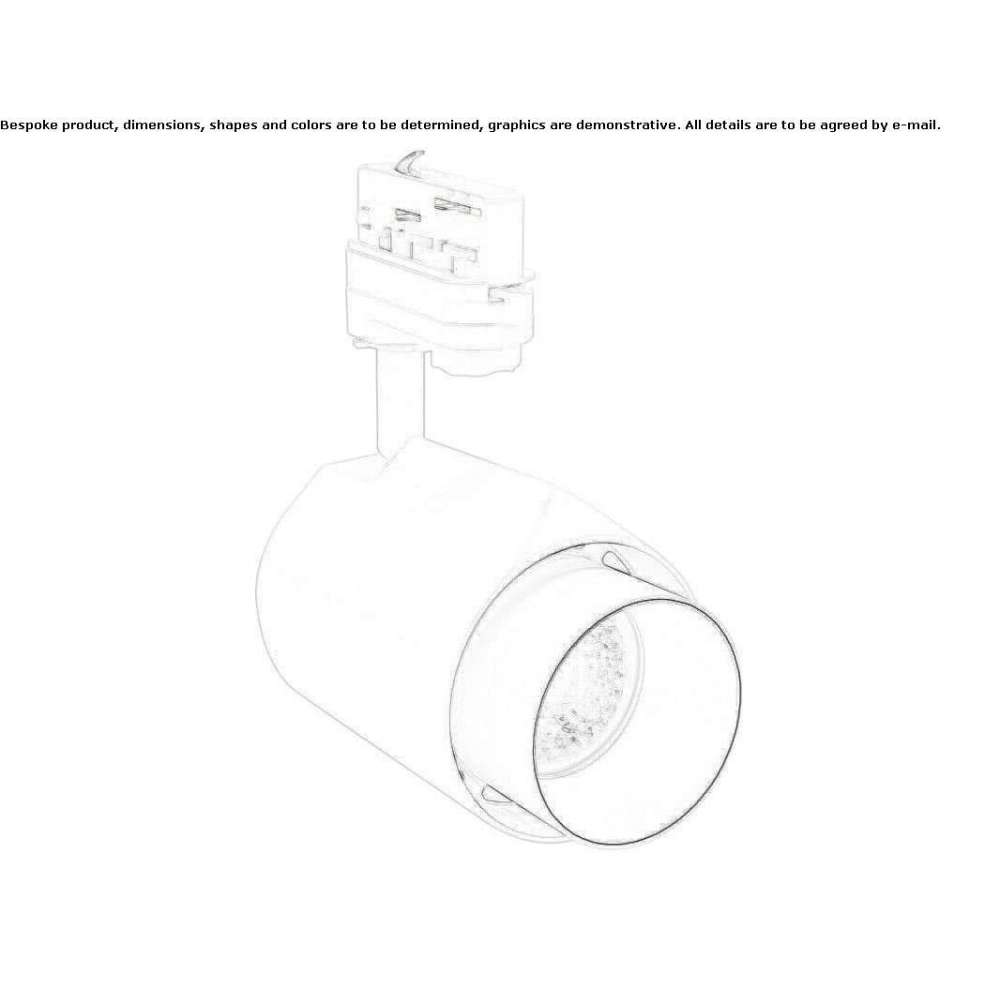

ALLIANCE TRACK LIGHTING has a very compact design thanks to the built-in controller. Therefore, they are less disturbing when used in commercial spaces, shop windows or showrooms. However, their greatest advantage is light efficiency. The optical lens ensures an optimal light beam and very low glare.
TECHNICAL DATA
IP classification IP20
Power source 220-240 VAC 50/60 Hz
White powder-coated aluminum housing or black
Power supply with
Electrical connection 3-phase power path
Average life 40,000 h at L80/B10
Operating temperature range -10° C to +45° C
/>Dimmable non
PHOTOMETRIC DATA
LED Type LUMINUS
Luminous Flux
- Alliance 15 Watt + 22 Watt
Neutral White
15 Watt: 1700 Lumens
>22 W: 2400 lumens
warm white
15 W: 1500 lumens
22 W: 2300 lumens
- Alliance 38 W
neutral white 4500 lumens
warm white 4200 lumens
Color temperature
neutral white 4000 K
warm white 3000 K
CRI90
Light angle 24°
UGR <21 / < 25
