Inspired by Proled JAY (not replica Proled JAY)

Due to the copyright notice, please note that this product is not a replica

Product description

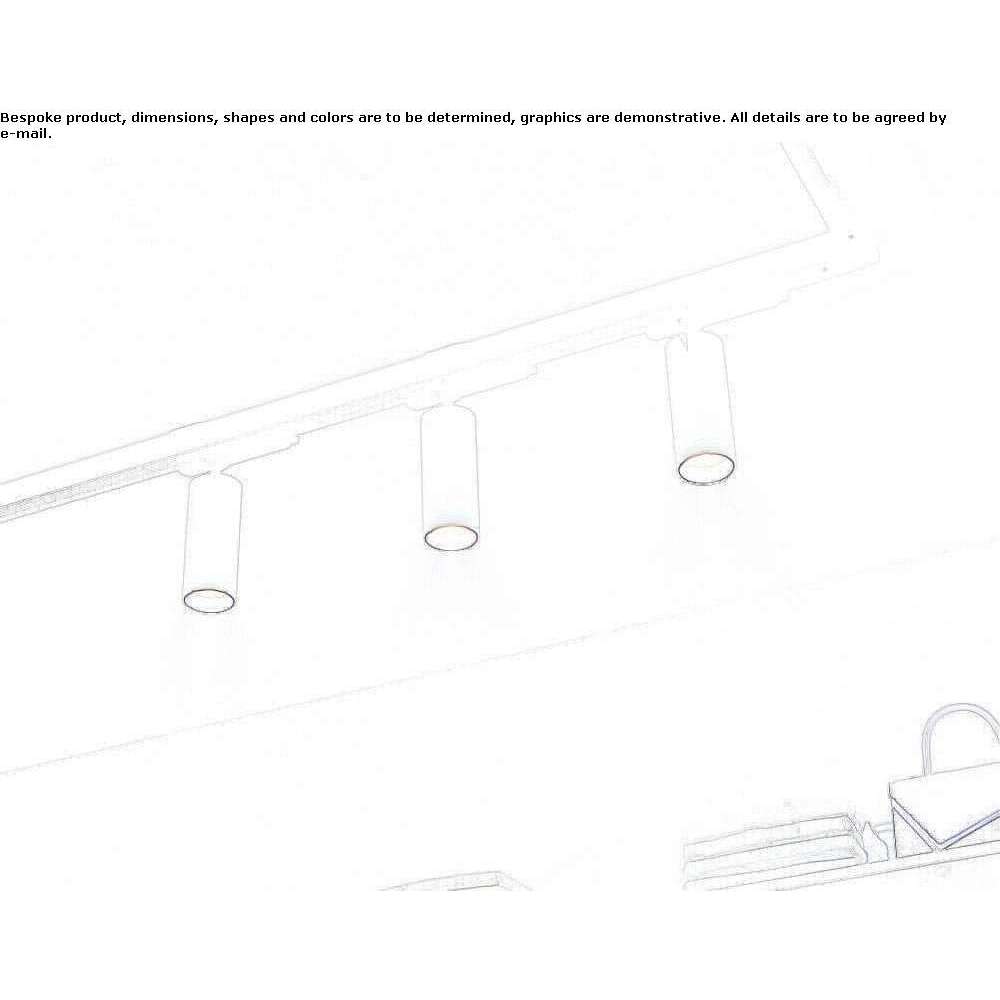

Jay is an aluminum LED spotlight.
The flexible spotlight directs full attention to the surroundings, develops its lighting effect regularly and remains discreet in the dark.
The versatile spotlight with a good light license fulfills its mission reliably and discreetly - with a professional understatement.
Tracklight / standard spot for 3-phase tracks and all applications, from residential to commercial buildings
Slim, elegant and discreet
Flexible, rotatable, rotatable, with the possibility of any positioning
Various light distribution angles
Compatible with 3-phase rail systems from Global, PowerGear, IVELA and STUCCCHI. Compatibility with other systems on request.
TECHNICAL DATA
IP classification IP20
Power source 220 - 240 VAC; 50-60 Hz
Aluminum housing white or black
Electrical connection 3-phase bus/DALI bus
Average life 50,000 h at L80/B10
Operating temperature range -10° C up to +45° C
PHOTOMETRIC DATA
LED type BRIDGELUX
Luminous flux
Jay 55 15 Watt/Jay 55 DALI 15 Watt
neutral white 1500 Lumens
warm white 1400 lumens
super warm white 1300 lumens
Jay 55 20 Watt/Jay 55 DALI 20 Watt
neutral white 2000 lumens
warm white 1900 lumens
super warm white 1800 Lumens
Jay 65 32 Watt/Jay 65 DALI 32 Watt
neutral white 3200 lumens
warm white 3000 lumens
super warm white 2800 lumens
Color temperature
neutral white 4000 K
warm white 3000 K
super warm white 2700 K
CRI90
Light angle 20°, 32°, 40° and 55°
