Inspired by Essenzialed Pype TRACK (not replica Essenzialed Pype TRACK)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Essenzialed Pype

Product description

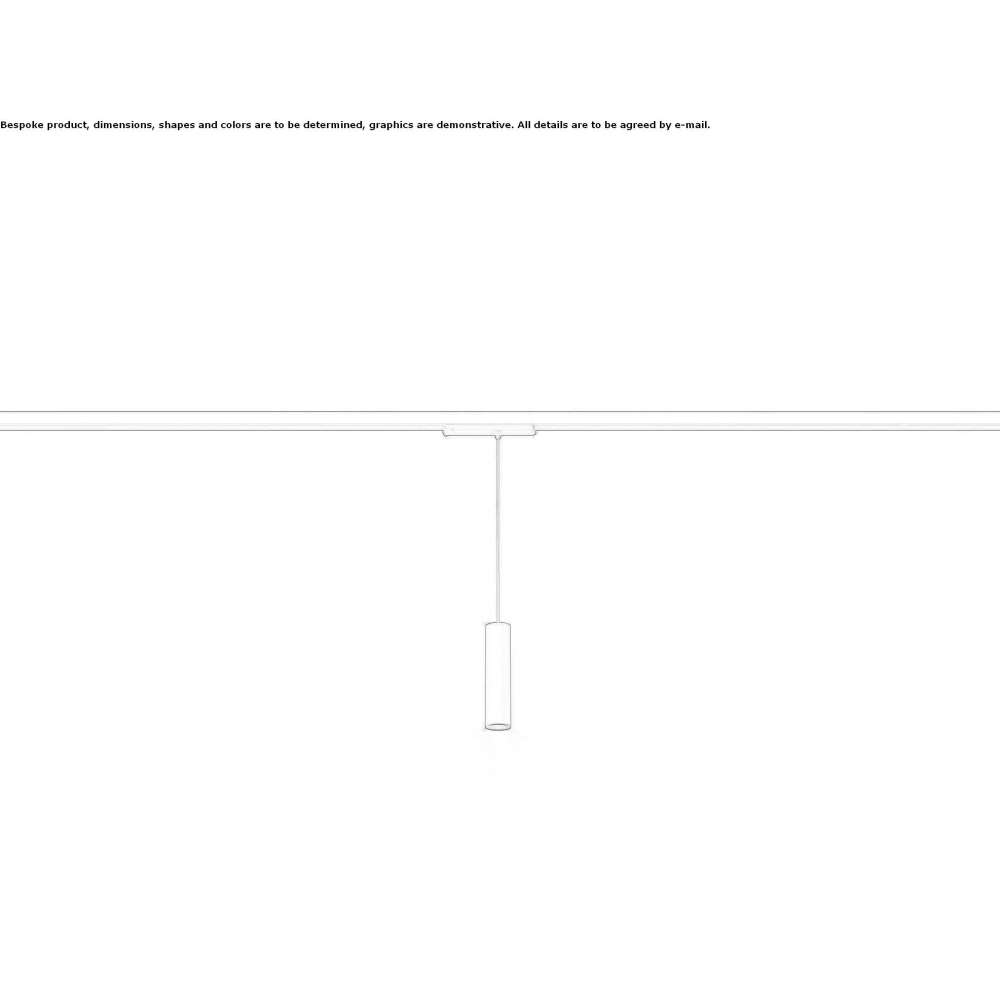

Pype Track is an LED cylinder suspended on a rail. The standard version is equipped with a CRI97 LED with very high chromatic efficiency, ideal for any type of application. On the plus side, we offer a version with SUNLIKE technology that reproduces the spectrum of sunlight without the blue light peak. The outer structure is made of powder-coated aluminum and it is possible to change the inner ring to a white, gold or black finish. The power supply is plugged into the rail and available in ON/OFF, DALI dimmable or dimmable via integrated CASAMBI versions.
Rail systems offer maximum flexibility, ensuring a technical and modern design. We offer a wide range of track projectors and diffused light fixtures with a high color rendering index. Our offer also includes a number of accessories that allow you to control glare and manage the light flux. A SUNLIKE version is available for some models, i.e. LED technology without the blue light peak, which allows you to reproduce the spectrum of sunlight, significantly improving the quality of light. All our track products are available with the CASAMBI APP management system.
Technical data
Material Aluminum
Weight 773g
Power socket length 1.4m
IP protection level IP20
EAC / CE marking
Electrical specifications
Power supply included
Supply voltage 220 V - 240 V
Main frequency 50 - 60 Hz
Total power 11 W
/> Light source
Type of LED source
Minimum voltage in the secondary circuit 31 V
LED absorption module 30.4 W
Color temperature 2700 K / 3000 K / 4000 K
Nominal LED flux 1116 lm / 1161 lm / 1191 lm
LED module efficiency 36 lm/W 38 lm/W 39 lm/W
LED efficiency class F
Durability L80/ B10 ( 25°C) > 50,000 h
Device power supply 12 W
Luminous flux 937 lm / 975 lm / 1001 lm
LED lamp efficiency 78 lm/W / 81lm/W / 83 lm/W
Saturated Red color index (R9) >80
Color rendering index (Ra) 97
SDCM 2
Optical system characteristics
Lens material Polycarbonate
