Inspired by Ideal Lux Quick (not replica Ideal Lux Quick)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Ideal Lux Quick

Product description

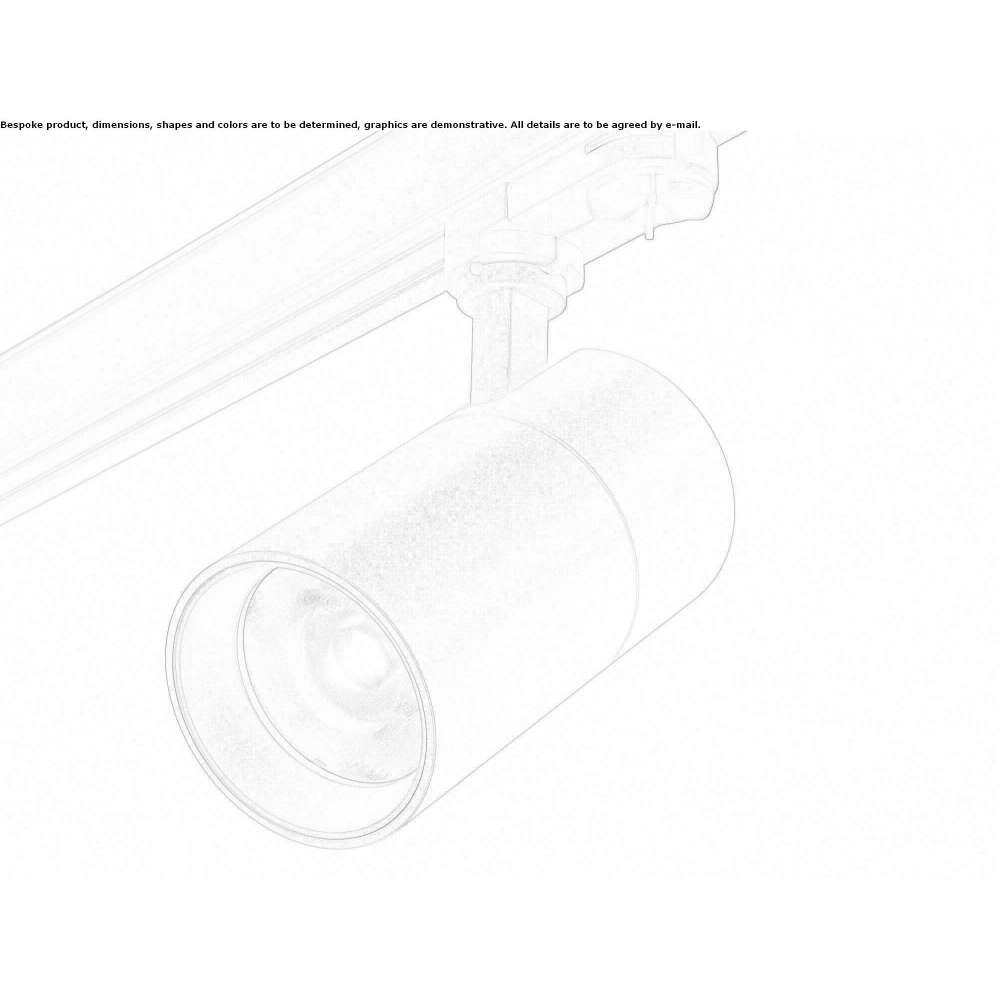

Quick is a cylindrical track reflector made of extruded aluminum, suitable for mounting on three-phase track. White or black powder coating, 355° swivel head with 90° adjustment, power controller is included and located in the cylindrical housing of the projector itself. Available version with 1-10 or DALI dimming. Light source with integrated COB LED technology for maximum efficiency, available in 3000K or 4000K color temperature; Energy-saving LEDs with a high color rendering index up to CRI ≥ 90; start sorting ≤3-step MacAdam; symmetrical light distribution optics with three different emission angles and glare control (UGR <19); assembly and disassembly without tools; Degree of protection IP20; insulation class I; LED lifespan 50,000 h L80B50. Perfect for installation in large rooms where high flexibility and color rendering are required, such as MUSEUMS, COMMERCIAL and RETAIL spaces.
Insulation class: 1
Protection level: 20
Emission: Direct
br />Source: LED 15W / 21W / 28W
LED features: LED COB CITIZEN
Luminous flux of the source: 1550, 1700, 1800, 1950 lm / 2150, 2350, 2450, 2750 lm / 3100, 3300, 3550, 3800 lm
Useful luminous flux: 1360, 1450, 1550, 1660 lm / 1900, 2070, 2160, 2350 lm / 2770, 2950, 3130, 3350 lm
Temperature color (Kelvins ): 300 0 / 4000 K
CRI: >80 / > 90
Control: On-Off, DALI, 1-10V
Construction material: Aluminum, Metal
Construction finish: Matte white, Matte black
Accessories not included: Honeycomb filter, Narrow or wide beam lens, Single On-Off/1-10V/DALI connector, Link On-Off/1-10V/DALI profile

Technical data

QUICK 15W / 21W: L 72 x H 221 x W 87 mm
QUICK 28W: L 90 x H 302 x W 87 mm
