Inspired by Ideal Lux Eos (not replica Ideal Lux Eos)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Ideal Lux Eos

Product description

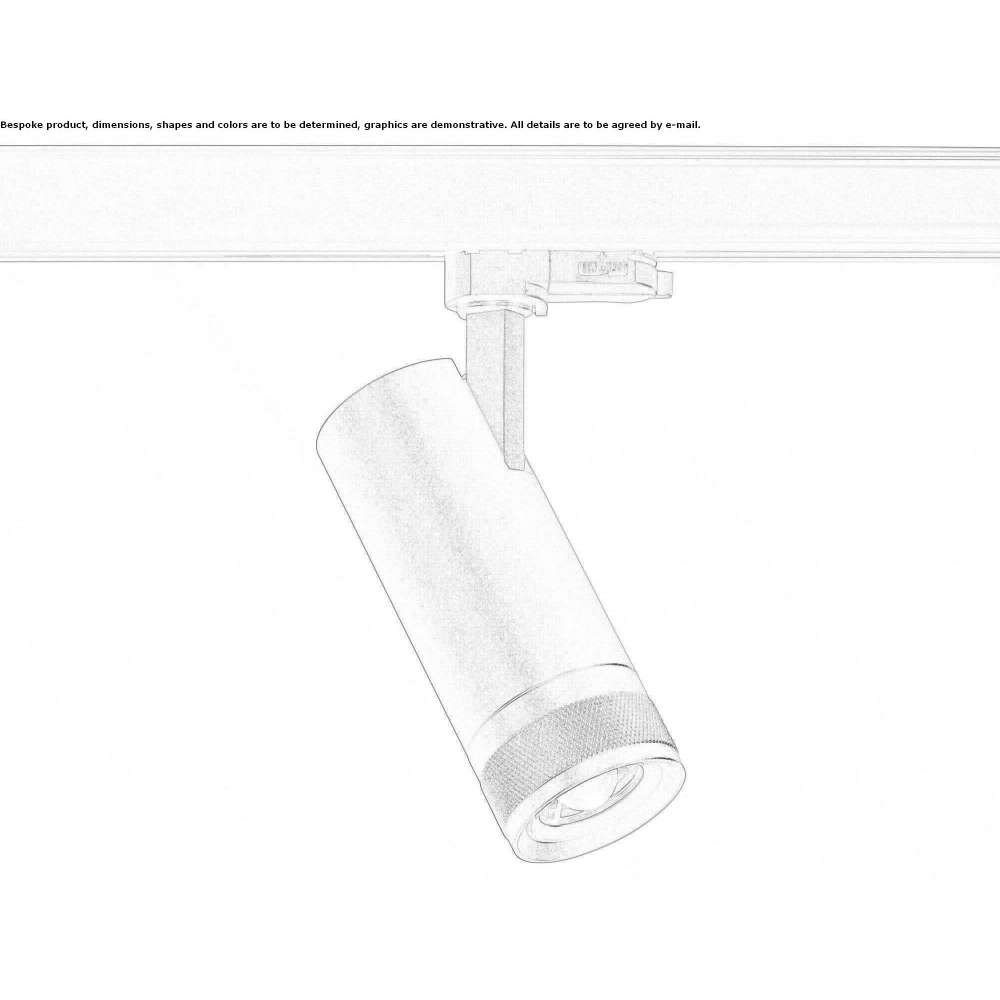

Eos is a cylindrical extruded aluminum track spotlight with symmetrical optics and variable light distribution from narrow to wide (20°-55°), suitable for three-phase track installation. White or black powder coating, 355° swivel head with 90° adjustment, power controller is included and located in the cylindrical housing of the projector itself. Available version with 1-10 or DALI dimming. Light source with integrated COB LED technology, available in two different powers and one color temperature of 3000K and chromatic index ≥ 90; start sorting ≤3-step MacAdam. Assembly, disassembly and adjustment of the beam opening without tools. Degree of protection IP20; LED lifespan 30,000 h L70B50. Perfect for installation in large rooms where high flexibility and high color rendering are required, such as MUSEUMS, COMMERCIAL and RETAIL spaces.
Insulation class: 1.2
Protection level: 20
Emission : Direct
Source: LED 15W / 25W
LED properties: LED COB BRIDGELUX
Source luminous flux: 1500 / 3000 lm
Useful luminous flux: 1420 / 2720 lm
Color temperature (Kelvin): 3000 K
CRI :> 90
Control: On-Off, DALI, 1-10V
Construction material: Aluminum
Construction finish: White, Black, Gold
Diffuser material: Polycarbonate
Diffuser finish: Transparent
Accessories not included: Single On-Off, Link On-Off or 1-10V/DALI profile

Technical data

EOS 15W: L 265.2 x H 222 x W 61.5 mm, L 247.2 x H 225 x W 61.5 mm, L 62 x H 217 x W 70 mm
EOS 25W: L 265, 2 x H 231 x W 72 mm, L 247.2 x H 235.5 x W 72 mm, L 72 x H 230 x W 70 mm
