LED lamp with dimmable function for suspended ceilings Trovo
More info
Inspired by Proled Infinity 6060 (not replica Proled Infinity 6060)
Due to the copyright notice, please note that this product is not a replica
Inspired by: Proled Infinity
Product description

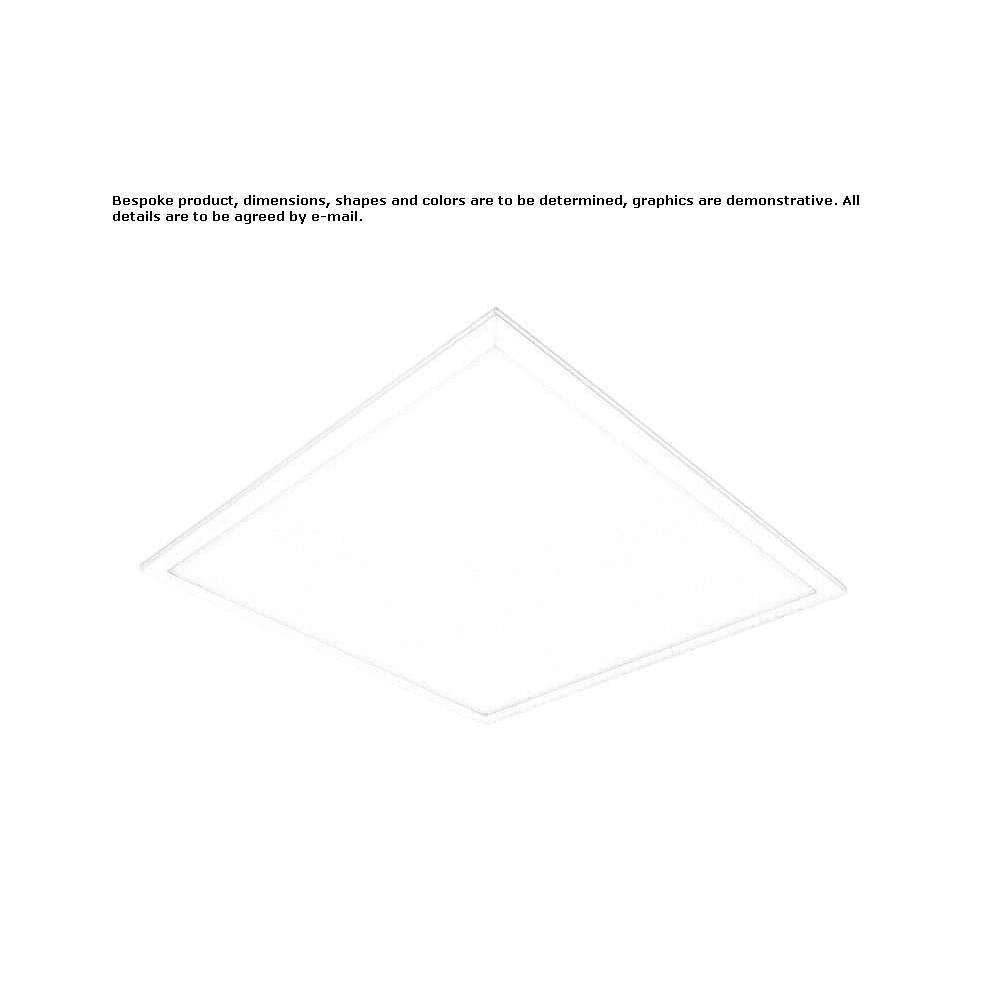

Infinity 6060 is an LED panel with a prismatic plexiglass cover ensuring uniform light distribution with very low glare.
TECHNICAL DATA
IP classification IP20
Power source 220-240 VAC 50/60 Hz
Aluminum housing, white frame
Includes controller
for 600 x 600 mm raster ceiling:
neutral white 950 mA; 35 VDC
warm white 1000 mA; 35 VDC
for grid ceiling 625 x 625 mm:
1000 mA; 35 VDC
DALI electrical connection / 600 x 600 mm (neutral white only):
2-PIN terminal block
625 x 625 mm / 600 x 600 mm (warm white only):
2-PIN screw terminal
Average life 50,000 h at L80/B10
Operating temperature range -10° C to +45° C
Dimmable only DALI version
DATA PHOTOMETRIC
LED type SMD High Lumen
Luminous flux for a 600 x 600 mm raster ceiling:
neutral white 4200 lumens
warm white 4300 lumens
for a 625 x raster ceiling 625 mm:
neutral white 4500 lumens
warm white 4300 lumens
Color temperature
neutral white 4000 K
warm white 3000 K
CRI80
Beam angle 90°
UGR< 19
