Inspired by Artemida Grafa SYSTEM (not replica Artemida Grafa SYSTEM)

Due to the copyright notice, please note that this product is not a replica

Inspired by: Artemida Grafa

Product description

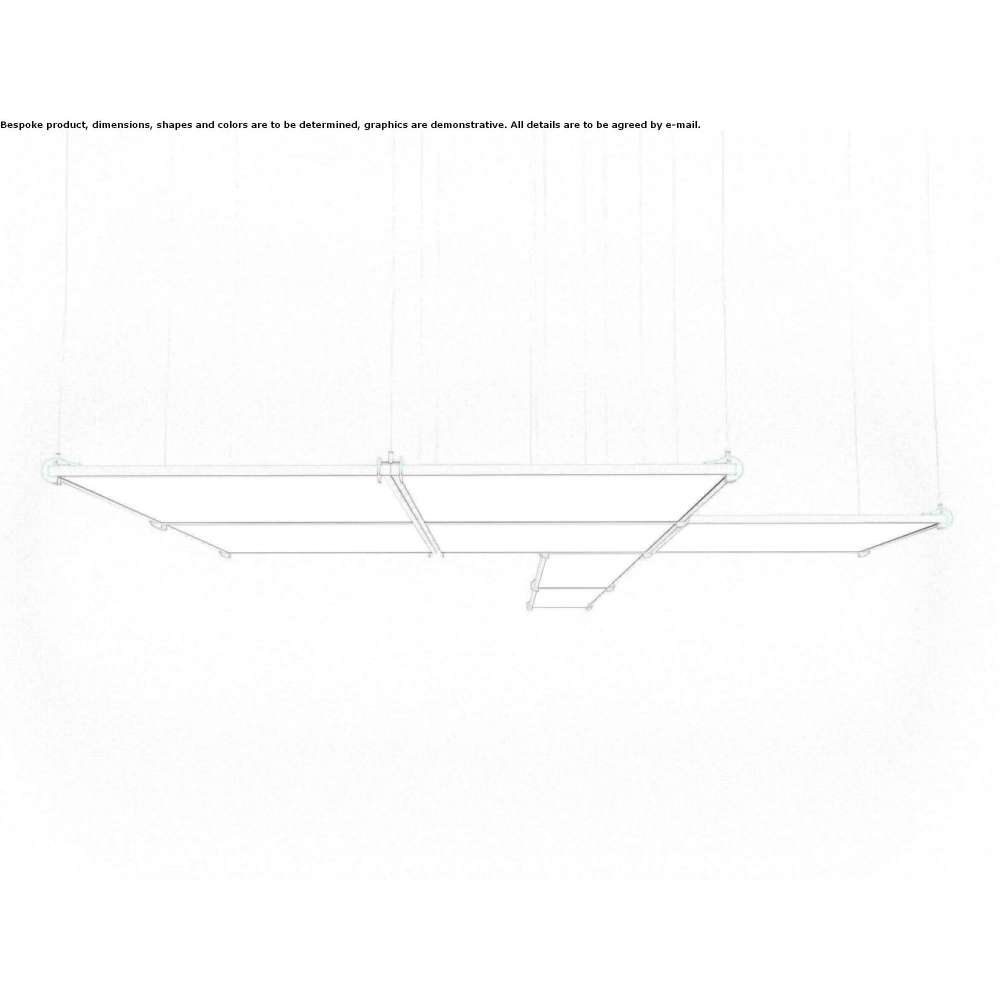

Grafa System is a LED hanging lamp, modular, made of aluminum and polycarbonate. Available in various sizes and formats.
FEATURES
Article code: M3004W61 / M3004N61 / M3003W61 / M3003N61 / M3001W61 / M3001N61
Color: silver gray
Watt: 39 W
Delivered luminous flux: 3207 lm / 3400 lm / 3665 lm / 3886 lm
CCT: 3000 K / 4000 K
Efficiency: 88%
Efficiency: 87.19 lm/W / 99.64 lm /W / 82.23 lm/W / 93.97 lm/W
CRI: 80
INCLUDED
Category: Led
Number: 1
Watt: 33W
Delivered luminous flux: 3864 lm / 4416 lm
Color temperature (K): 3000 K / 4000 K
CRI: =80(typ.)
Color tolerance: MacAdam 4SDCM
Efficiency: 119 lm /W/136lm/WGrafa is a modular system with direct and indirect emission with high-efficiency LEDs. Available in two colors: warm white (3000K), neutral white (4000K) - CRI=85 (typ.). Installation with suspension. Single assembly, in a continuous line at an angle (90°), any composition. Dali dimmable electronic power supply. Steel suspension ropes with quick adjustment. Complies with EN62471, EN60598-1 and other specific standards.
Materials: Extruded matte anodized aluminum construction, dust-proof polycarbonate top screen, 6 different shades of staples.

Technical data

60 x 60 x height 1.8 cm
120 x 30 x height 1.8 cm
